28mm Nema11 Hybrid Stepper Motor 6 Wire 4 Leads 1.8 Step Angle
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) |
| Max Axial Force | 10N |
| Step Angle | 1.8 ° |
| No. Of Leads | 4 Or 6 |
Product Description
28mm Nema11 Hybrid Stepper Motor 6 Wire 4 Leads 1.8 Step Angle
The combination of two motors like a permanent magnet and variable reluctance is known as a hybrid motor. The working principle of a hybrid motor is, the rotor in this motor is magnetized axially similar to a permanent magnet stepper motor, whereas the stator is energized electromagnetically similar to a variable reluctance stepper motor. So it is an actuator that changes electrical pulses to angular displacement.
As compared with other types, Hybrid Stepper motor provides high torque including a less step angle and it has good dynamic property. Similarly, the usage of stepper motors is also increased in different fields like robotics, industrial automation, medical, etc.
Hybrid stepper motors are available in different types namely basic, encoder, IP65, brake, integrated type including drive & controller, brake, and geared.
Electrical Specification
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (G.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
28BYGH102-01 |
1.8 |
4 |
3.90 |
0.67 |
6.3 |
3.2 |
600 |
32 |
0.11 |
|
28BYGH105-01 |
1.8 |
6 |
3.1 |
0.95 |
3.3 |
1.0 |
430 |
32 |
0.11 |
|
28BYGH301 |
1.8 |
4 |
4.56 |
0.67 |
6.8 |
4.9 |
950 |
45 |
0.17 |
|
28BYGH303 |
1.8 |
6 |
3.40 |
0.95 |
3.4 |
1.0 |
750 |
45 |
0.14 |
|
28BYGH501 |
1.8 |
4 |
8.04 |
0.67 |
12.0 |
7.2 |
1200 |
51 |
0.19 |
|
28BYGH502 |
1.8 |
6 |
3.80 |
0.95 |
4.0 |
1.3 |
900 |
51 |
0.20 |
*Products can be customized by special request.

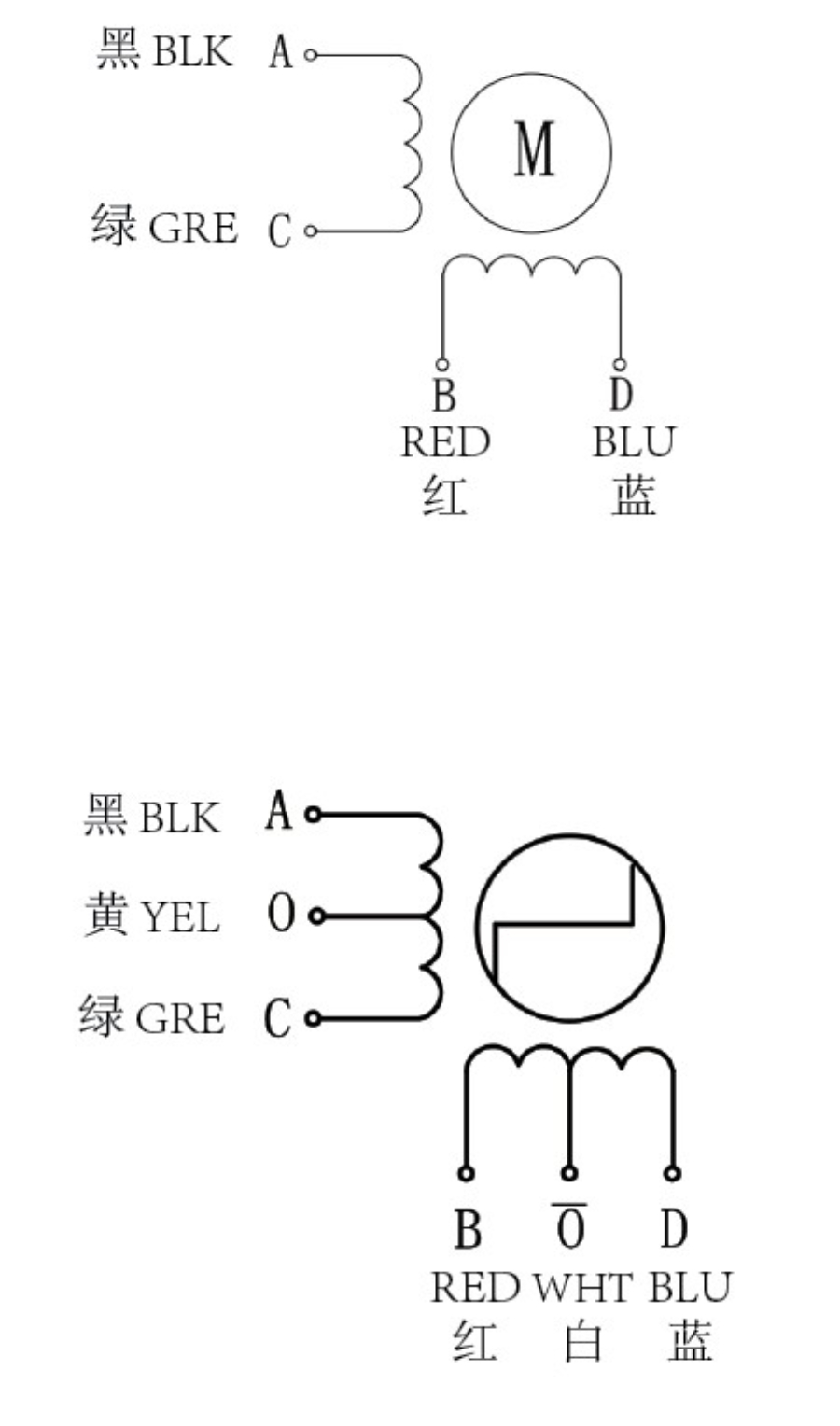

Wiring Diagram

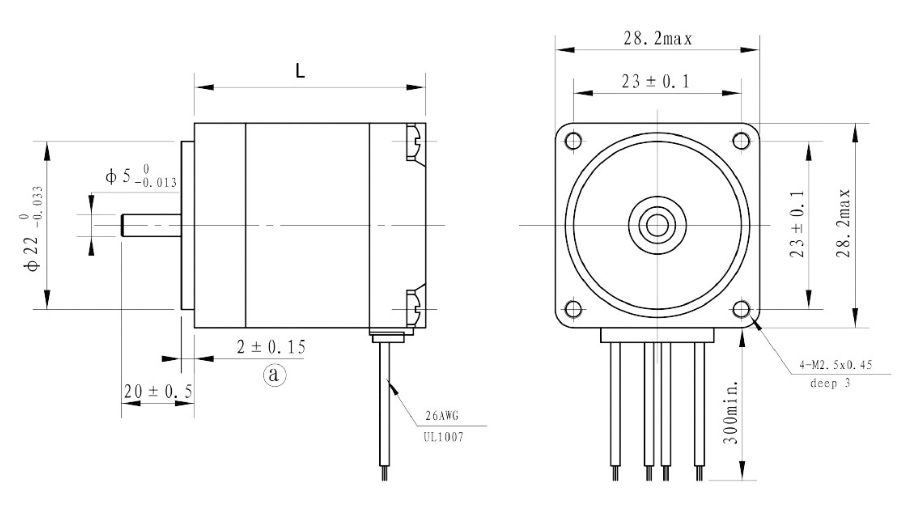

Mechanical Dimension
Construction & Working Principle
The construction of a stepper motor is fairly related to a DC motor. It includes a permanent magnet like Rotor which is in the middle & it will turn once force acts on it. This rotor is enclosed through a no. of the stator which is wound through a magnetic coil all over it. The stator is arranged near to rotor so that magnetic fields within the stators can control the movement of the rotor.
