36mm Nema14 Bldc Motor 4 Pole 24V 3 Phase 0.03Nm 3000RPM

Short Description:

Place of Origin:  China

Brand Name: Hetai

Certification: CE ROHS ISO

Model Number: 36BL

Minimum Order Quantity: 50

Packaging Details: Carton with Inner Foam Box, Pallet

Delivery Time :28-31

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000pcs/month


Product Detail

Product Tags

Specifications

Product Name Brushless DC Motor
Hall Effect Angle 120° Electrical Angle
Speed 3000 RPM Adjustable
Winding Type Star
Dielectric Strength 600VAC 1 Minute
Max Radial Force 15N (10mm From Front Flange)
Max Axial Force 10N
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩ Min.500VDC
IP Level IP40

Product Description

36mm Nema14 Bldc Motor 4 Pole 24V 3 Phase 0.03Nm 3000RPM

The 36BL series is lightweight and space-saving, which also has a torque of 0.03NM.

36BL series Brushless DC motor is often combined with a 36mm gearbox, which is widely exploited in robotic industry such as the wheels.

Electrical Specification





Model

Specification

Unit

36BLY01

Number Of Phases

Phase

3

Number Of Poles

Poles

4

Rated Voltage

VDC

24

Rated Speed

Rpm

3000

Rated Current

A

2.0

Rated Torque

N.m

0.03

Rated Power

W

9.4

Peak Torque

N.m

0.09

Peak Current

Amps

6

Torque Constant

N.m/A

0.015

Back EMF constant

V/kRPM

1.6

Body Length

mm

42

Weight

Kg

0.16

Electrical Specification

***Note: The products can be customized by your request. Please contact us for more details.

*Products can match gearbox 36mm

Wiring Diagram

ELECTRICAL CONNECTION TABLE

FUNCTION

COLOR

 UL1007 26AWG

+5V

RED

HALL A

GREEN

HALL B

BLUE

HALL C

WHITE

GND

BLACK

PHASE A

BROWN

PHASE B

YELLOW

PHASE C

ORANGE

Related Product

36BLY01 with gearbox 36mm have been used in the lawnmower range.

36BLY01 with gearbox 36mm have been used in the lawnmower range.

APPLIED IN LAWN MOWER ROBOTS
94 RPM
1.5 N.M

Advantage of BLDC gearbox motor :
-High torque output
-Low noise
-Compact in size
-Reduced speed

Advantage of BLDC motor :

-High efficiency

-Running smoothly

-Precise positioning

Quality certificate

ROHS

ROHS_00

CE

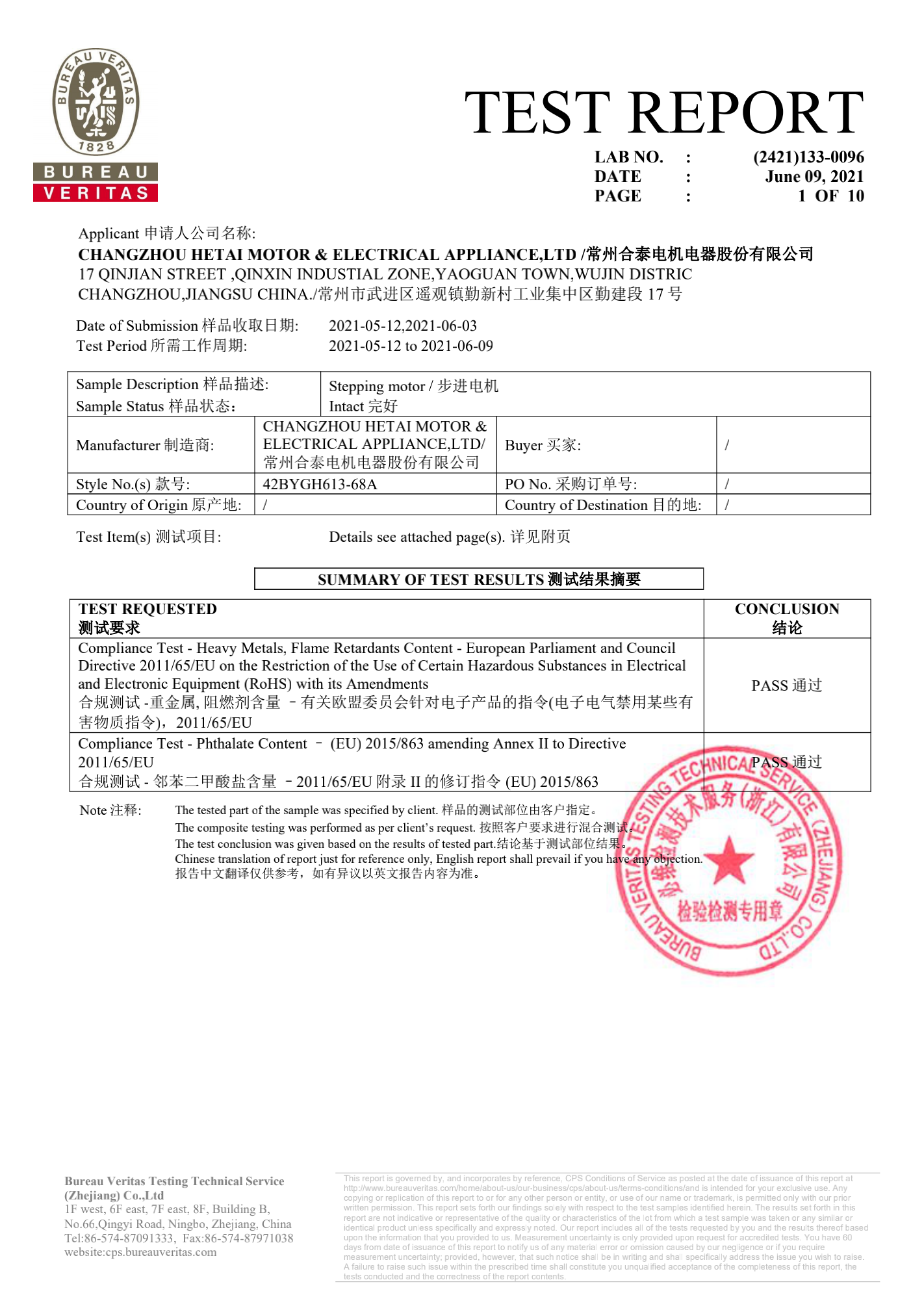

Stepper motor ROHS report

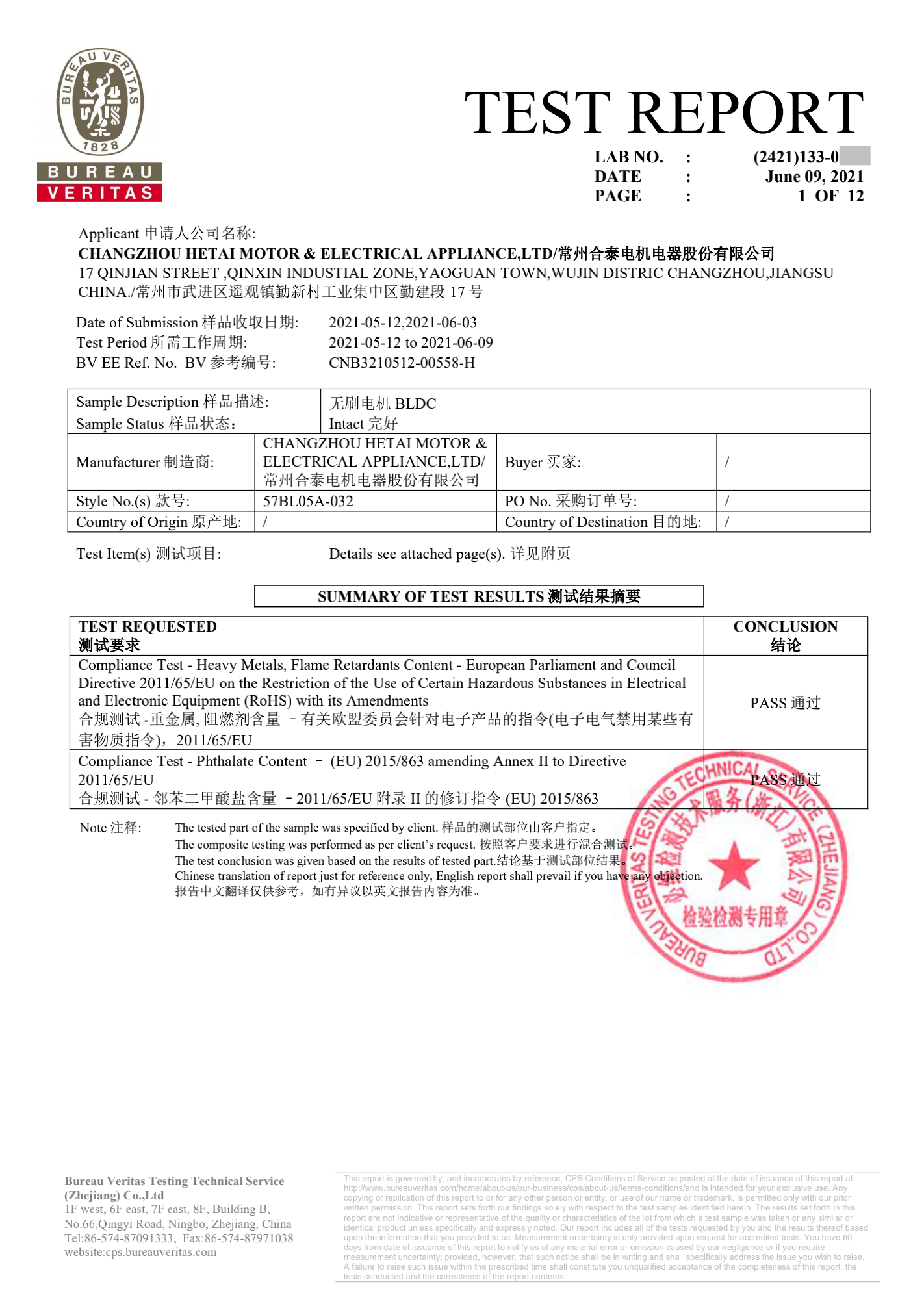

BLDC Motor ROHS report

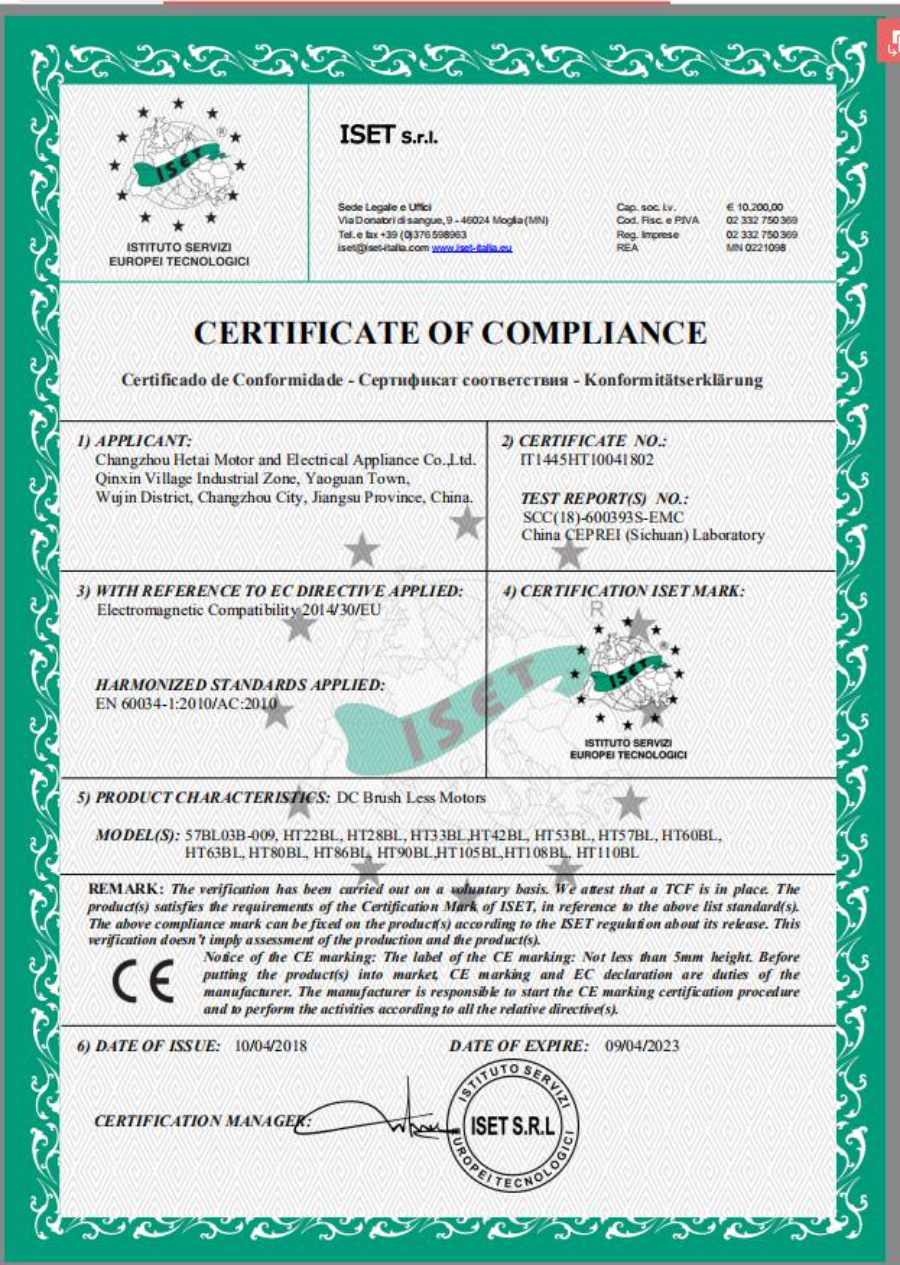

CE cetificate

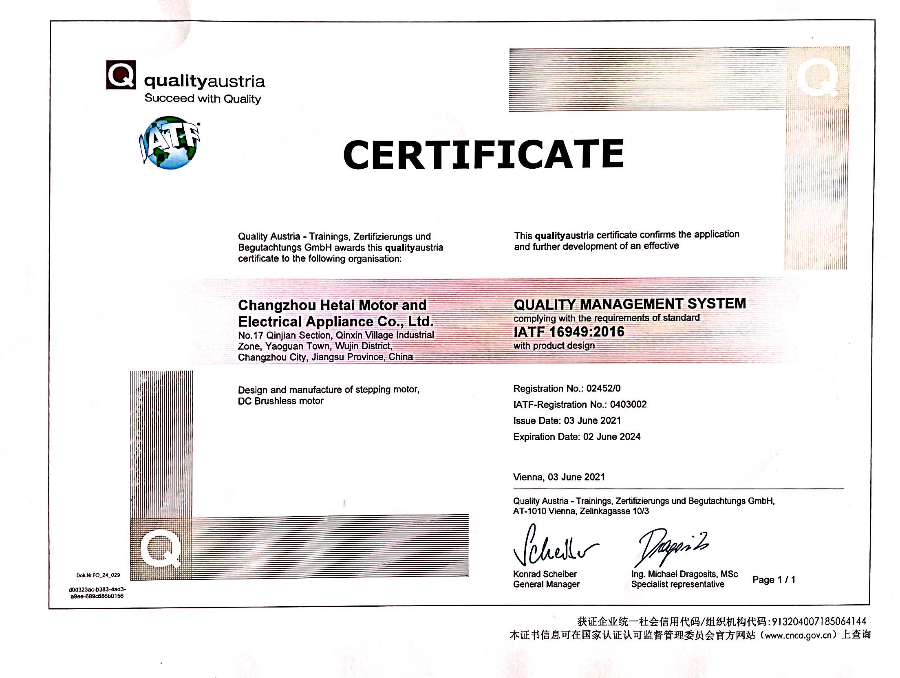

IATF16949-EN

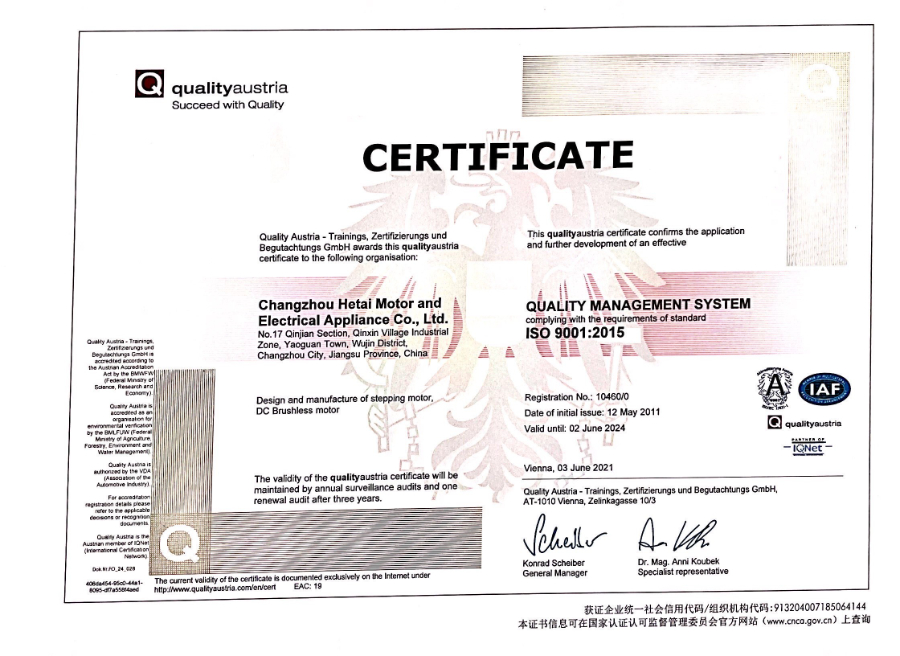

ISO9001-EN

IATF 16949: 2016

ISO 9001: 2015

High quality promise

Brushless Motor inspection Demonstration.

Hetai has always considered product quality at the first place. The company has its own quality management system since its foundation. During the years, it has gained the quality certification of ISO, CE, IATF 16949, ROHS. Hetai also has internal & external quality audits to avoid any negligence.
