57mm Nema23 Integrated Stepper Motor 4 Wires 1.8 Step Angle

Short Description:

Place of Origin: China

Brand Name:Hetai

Certification:CE ROHS ISO

Model Number:57BYGH

Minimum Order Quantity: 50

Packaging Details: Carton with Inner Foam Box, Pallet

Delivery Time:28-31

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability:10000pcs/month

Send email to us

Product Detail

Product Tags

Specifications

Product Name	Integrated Stepper Motor
Step Angle	1.8 °
Hoiding Torque	15 Kg.cm
Resistance	0.5 Ω/phase
Induction	1.8 MH/Phase
Step Accuracy	± 5%
Temperature Rise	80 ℃ Max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100MΩ Min.500 VDC
Dielectric Strength	500VAC 1 Minute
MAX Radial Force	75N (10mm From Front Flange)
MAX Axial Force	15N

Product Description

57mm Nema23 Integrated Stepper Motor 4 Wires 1.8 Step Angle

The Integrated Stepper Motor is a very economical motion control system because of its built-in microstep controller and driver electronics that are integrated into the assembly. The Integrated Stepper Motor series takes the guesswork out of stepper motor and driver compatibility. Integrated Stepper Motors, drivers and controllers are available in NEMA sizes 17 and 23. High torque stepper motors are used in the Integrated Stepper Motor series offer 1.8 degree step angle with stack lengths of 1/2, 1, 2, or 3, providing for a wide range of start-up torque and intertia. If you need modifications done on your stepper motor windings, shaft modifications and encoder adders are available for remote monitoring of position.

Explanation	IO57
	Minimum Value	Typical Value	Maximal Value	Unit
Continuous output current	1.0	-	5.6	A
Power Supply Voltage (DC)	15	24/36	50	Vdc
Control signal input current	6	10	16	mA
Control signal input current	-	5	-	Vdc
Minimum time width of pulse high level	1.5	-	-	US
Overvoltage point	52			Vdc
Step frequency	0	-	200	KHz
Insulation Resistance	100			MΩ

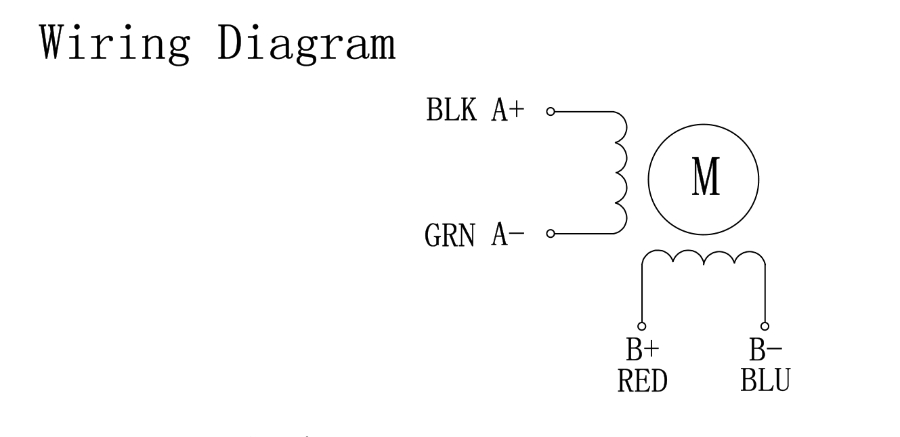

Wiring Diagram

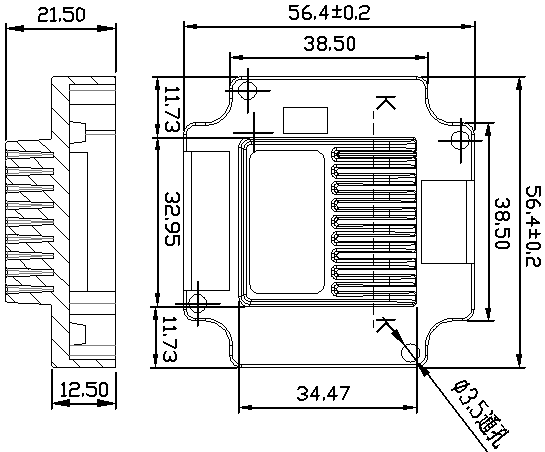

Mechanical Dimension

Suitable for a variety of small and medium-sized automatic equipment and instruments, such as: Engraving Machine, marking machine, cutting machine, medical equipment, laser phototypesetting, plotter, CNC machine tools, automatic assembly equipment. Ideal for applications where the user expects low noise, low vibration, low heat and high speed

Driver Manual

IO57 is a new digital Integrated stepper driver, which is designed by 32-bit DSP digital processing technology, variable current technology and low heating technology. It has the advantages of low vibration, stable operation, low heating and high reliability. Users can set the driver through the serial port 200-51200 within the arbitrary subdivision and rated current value output, to meet the needs of most applications. Due to the use of built-in micro-subdivision technology, even in the conditions of low subdivision, but also can achieve high subdivision effect, low, medium and high-speed operation is very smooth, ultra-low noise. The driver has the function of power-on auto-adaptive motor, which can automatically generate the optimal operating parameters for different motors and maximize the performance of the motor.
