57mm Nema23 Hybrid Stepper Motor 6V 4 Leads 6 Wire 1.8 Step Angle 0.45KG

Short Description:

Place of Origin : China

Brand Name: Hetai

Certification: CE ROHS ISO

Model Number: 57BYGH

Minimum Order Quantity: 50

Packaging Details: Carton with Inner Foam Box, Pallet

Delivery Time:  25DAYS

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000pcs/month


Product Detail

Product Tags

Specifications

Product Name Hybrid Stepper Motor
Step Accuracy  ± 5%
Temperature Rise  80 ℃ Max
Insulation Resistance 100MΩ Min.500VDC
Ambient Temperature -20℃~+50℃
Dielectric Strength  500VAC 1 Minute
Max Radial Force 75N (20mm From Front Flange)
Max Axial Force 15N
Step Angle 1.8 °
Lead Wire Number  4,6
Motor Weight(Kg) 0.45/0.65/0.70/1.0/1.13

Product Description

57mm Nema23 Hybrid Stepper Motor 6V 4 Leads 6 Wire 1.8 Step Angle 0.45KG

A hybrid stepper motor consists of a permanent magnet sandwiched between the two rotor halves (causing axial polarity), which make up the spinning part of the motor, placed into a stator housing where the stator coils of wire make up the different motor phases.  The NEMA 23 series has a great flexibility of different application as it has a wide range of holding torque and inductance.

Electrical Specification

MODEL STEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(KG.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)

57BYGH001A

1.8

4

6.0

0.5

12

20

3.5

41

0.45

57BYGH048-11

1.8

4

4.4

2.0

2.2

5.0

6.0

41

0.45

57BYGH201-22A

1.8

4

6.6

0.6

11

25

7.0

51

0.65

57BYGH218-45

1.8

4

2.6

2.0

1.3

4

8.0

51

0.65

57BYGH420-77

1.8

6

3.8

2.0

1.9

3.5

9.0

56

0.70

57BYGH432-63A

1.8

6

2.4

3.0

0.8

1.2

9.0

56

0.70

57BYGH633-131

1.8

6

3.0

3.0

1.0

1.8

13.5

78

1.00

57BYGH639-10E

1.8

4

2.1

4.2

0.5

1.6

18

78

1.13

57BYGH801-01

1.8

6

3.3

3.0

1.1

2.5

16

84

1.13

57BYGH815

1.8

4

7.36

1.6

4.6

16

20

84

1.13

*Products can be customized by special request.

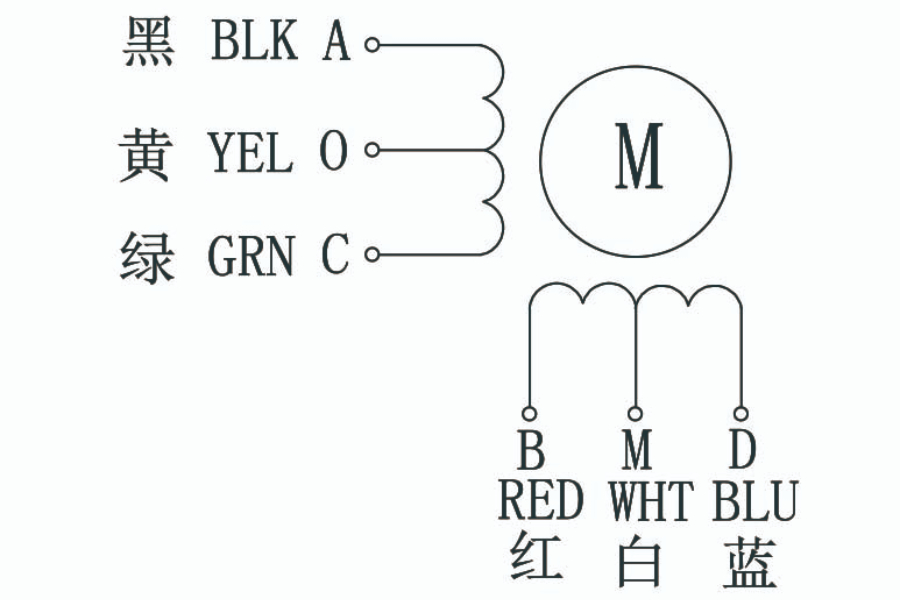

Wiring Diagram

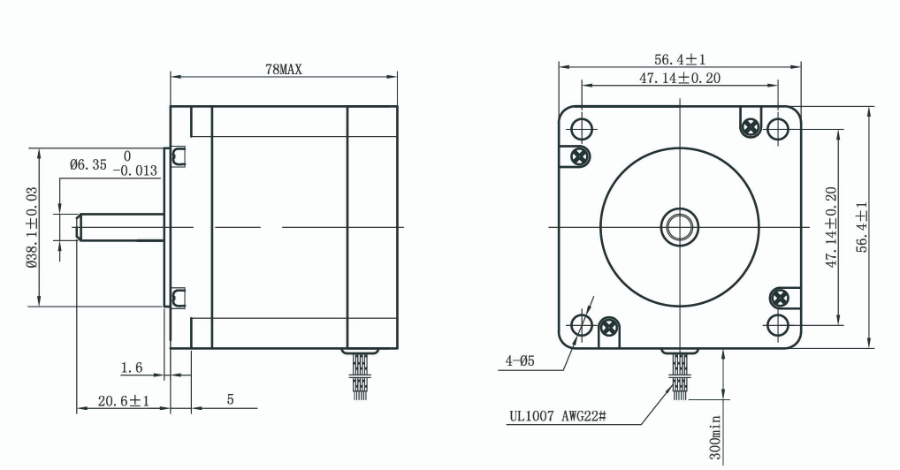

Mechanical Dimension

Production Process

Production equipment

Inspection process

Strict inspection process to ensure that every product is a qualified product,the quality is guaranteed。
