42mm Nema17 Hybrid Stepper Motor 2.4V 4 Leads 0.9 Step Angle
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) |
| Max Axial Force | 10N |
| Step Angle | 0.9 ° |
| Lead Wire Number | 4 |
| Motor Weight | 0.20/0.24/0.34(Kg) |
Product Description
42mm Nema17 Hybrid Stepper Motor 2.4V 4 Leads 0.9 Step Angle
The Hybrid stepper motor is an electric motor whose main feature is that its shaft rotates by performing steps, that is, by moving by a fixed amount of degrees. This 42BYGHM series has a step angle of 0.9°.
The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA 17 Hybrid Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.
Electrical Specification
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (G.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
42BYGHM203 |
0.9 |
4 |
10 |
0.5 |
20 |
40 |
2100 |
34 |
0.20 |
|
42BYGHM213-07A |
0.9 |
4 |
8 |
1 |
8.0 |
13 |
2200 |
34 |
0.20 |
|
42BYGHM607-16 |
0.9 |
4 |
2.6 |
1.7 |
1.5 |
3.2 |
3200 |
40 |
0.24 |
|
42BYGHM619-08 |
0.9 |
4 |
11.2 |
0.4 |
28 |
60 |
2800 |
40 |
0.24 |
|
42BYGHM805 |
0.9 |
4 |
3.5 |
1 |
3.5 |
7.6 |
3700 |
48 |
0.34 |
|
42BYGHM810 |
0.9 |
4 |
2.4 |
2.4 |
1.0 |
1.8 |
4800 |
48 |
0.34 |
*Products can be customized by special request.

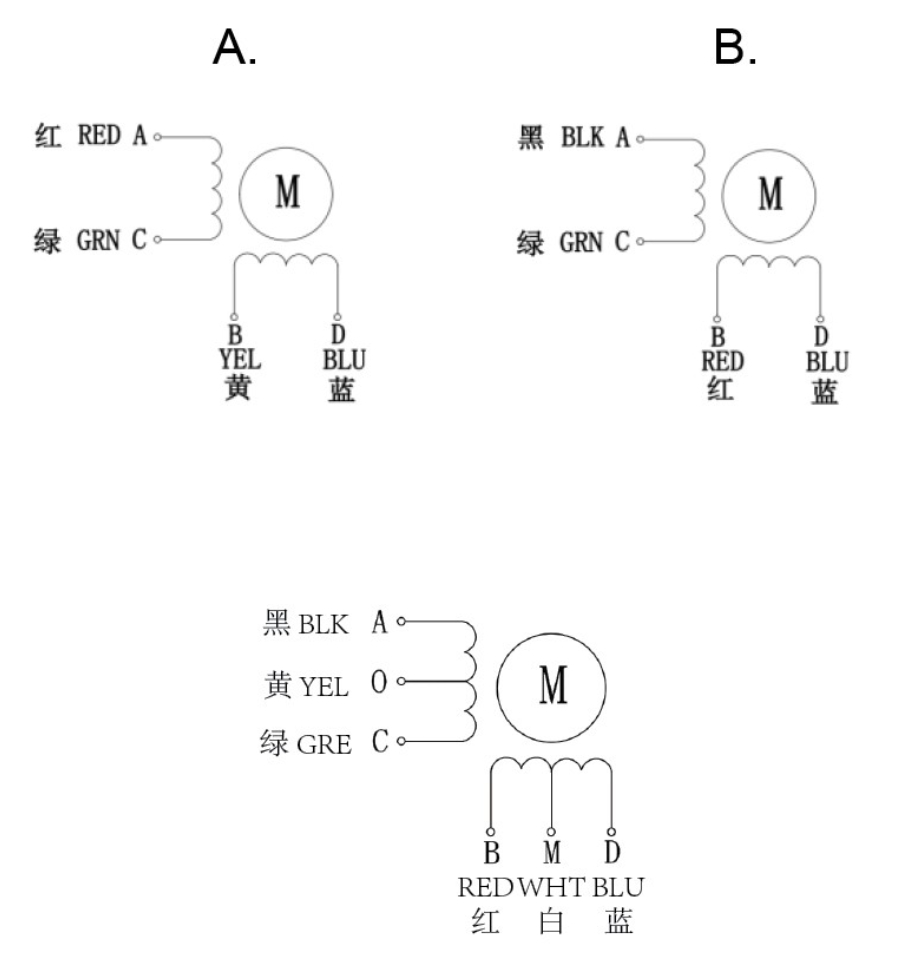

Wiring Diagram

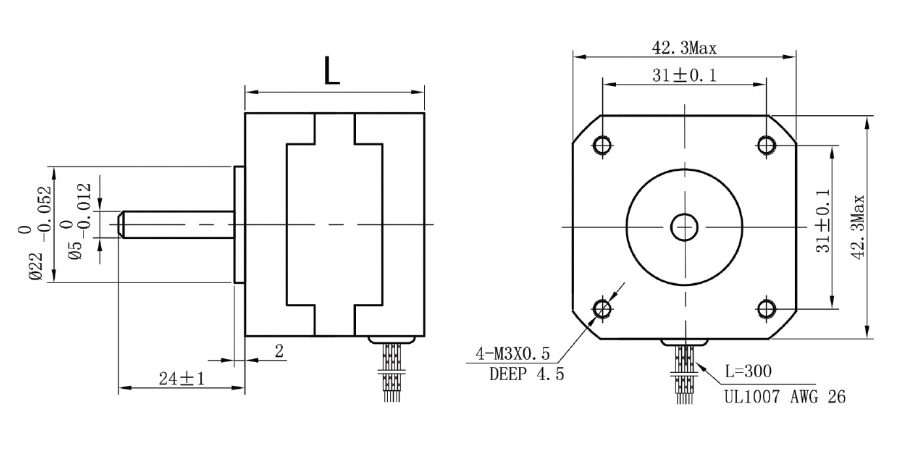

Mechanical Dimension
Production Process

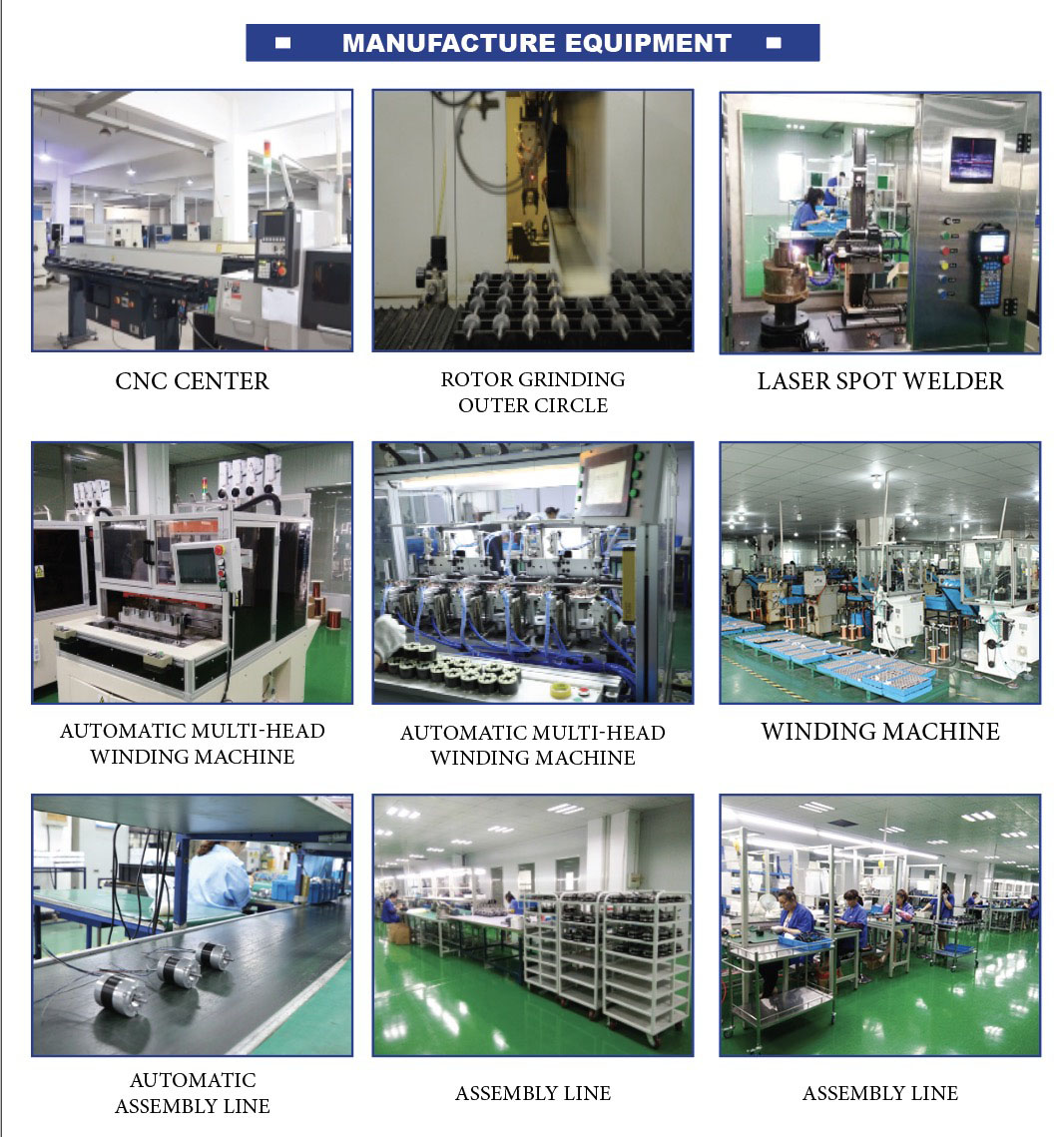

Production equipment
Inspection process
Strict inspection process to ensure that every product is a qualified product，the quality is guaranteed。
Certificate
Patent certificate
