42mm Nema17 Linear Stepper Motor 4 Wires 1.8 Step Angle
Specifications
| Product Name | Linear Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) |
| Max Axial Force | 10N |
| Step Angle | 1.8° |
| Lead Wire Number | 4 |
Product Description
42mm Nema17 Linear Stepper Motor 4 Wires 1.8 Step Angle
The protection level of linear Nema 17 stepper motor is IP40, the working temperature is -20℃~+50℃. It has a holding torque of 4.5 kg.cm.
The products can be customized by special request.
Hetai electrical Appliance Co., Ltd. will provide the product warranty service of 12 months from the date of delivery for customers and provide the free product maintenance and consultation services for customers within the warranty period.
Electrical Specification
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ohm/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
42BYGHL208-12A |
1.8 |
4 |
12.0 |
0.4 |
30.0 |
42.0 |
2.6 |
34 |
0.20 |
|
42BYGHL613-03A |
1.8 |
4 |
2.3 |
1.7 |
1.35 |
3.0 |
3.5 |
40 |
0.26 |
|
42BYGHL810-09 |
1.8 |
4 |
3.8 |
1.2 |
3.2 |
6.0 |
4.5 |
48 |
0.36 |
*Products can be customized by special request.

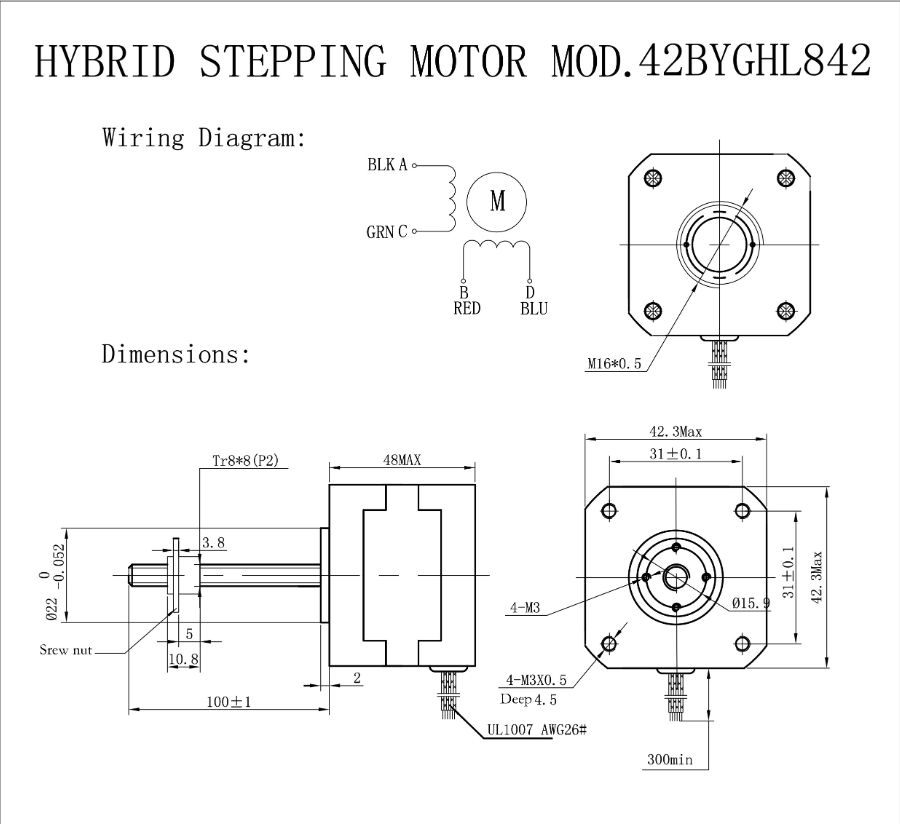

Mechanical Dimension
Production Process

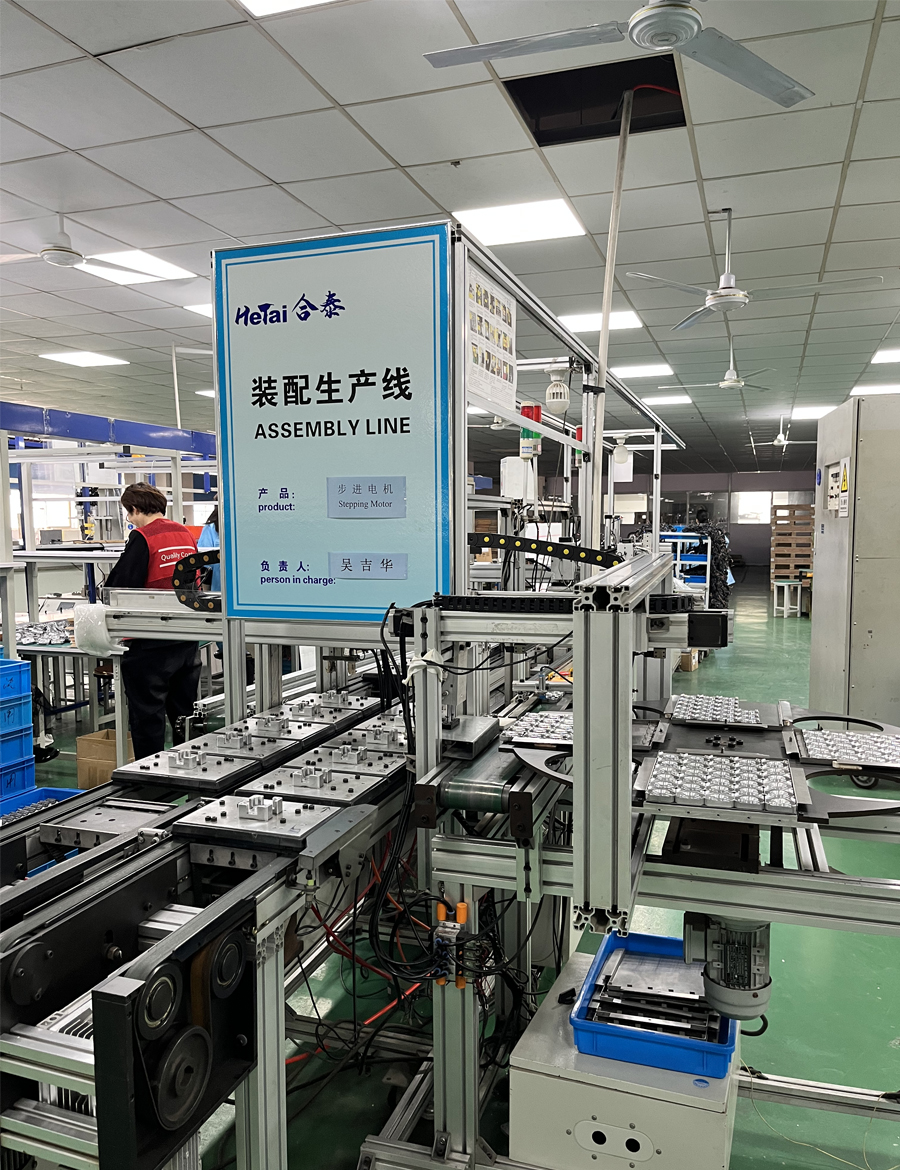

Automatic assembly line
Inspection process
Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia, and all-around China.
