BLDC motor with gearbox high speed high quality Nema 17 24 V 0.8A

Short Description:

Place of Origin: China

Brand Name: Hetai

Certification: CE ROHS ISO

Model Number: 42BLY01C-004AG112

Minimum Order Quantity: 50

Price: USD

Packaging Details: Carton with Inner Foam Box, Pallet

Delivery Time: 28-31

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000pcs/month

Send email to us

Product Detail

Product Tags

Specifications

Product Name	Brushless Gearbox Motor
Gearbox diameter	36mm or 42mm
Nominal Voltage	24 V
Ambient Temperature	-20℃~+50℃
No-load Speed	5000± 10% RPM
No-load Current	0.8 Apms Max
Ambient Temperature	-20℃~+50℃
Resistance	2.2 OHMS
Number of phase	3
Number of poles	4
Hall Effect Angle	120° Electrical Angle
Protection Level	IP40
Certification	CE ROHS ISO

Product Description

NEMA 17 24 V 42MM*42MM customized Gearbox Brushless Motor and matching amplifiers for motion applications requiring higher speeds.

A 12V Motor or 24V Motor can produce significantly more torque with the addition of a planetary gearbox. If your application requires additional torque, be sure to check out or wide selection of direct current gear motor options. As a renowned dc motor manufacturer, we are able to offer either brushed or brushless gearbox motors with our planetary gear motors. For devices and applications that require additional control, we can provide a gear motor w/encoder. Check out the planetary gear motor 24v that we designed and manufactured for articulating tv mounts.

Electrical Specification

Nema 17 Brushless Gearbox Motor Electrical Specification

Motor Part
Manufacture Model		42BLY01C-004AG112	42BLY203-002AG25
Gearbox Diameter	mm	42mm	42mm
Number of poles		4	3
Number of phases		4	3
Rated Voltage	VDC	24	24
Rated Torque	N.m	2.50	1.44
Rated Speed	Rpm	26± 10%	120± 10%
Reduction Ratio		112:1	25:1
Rated Output Power	W	7	18
Length	mm	102.1	106.3
Weight	KG	0.52	0.6

*Products can be customized by special request.

Wiring Diagram

FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALLB	GREEN
HALLC	BLUE
GND	BLACK
PHASE A	YELLOW	UL3265 22AWG
PHASE B	GREEN
PHASE C	BLUE

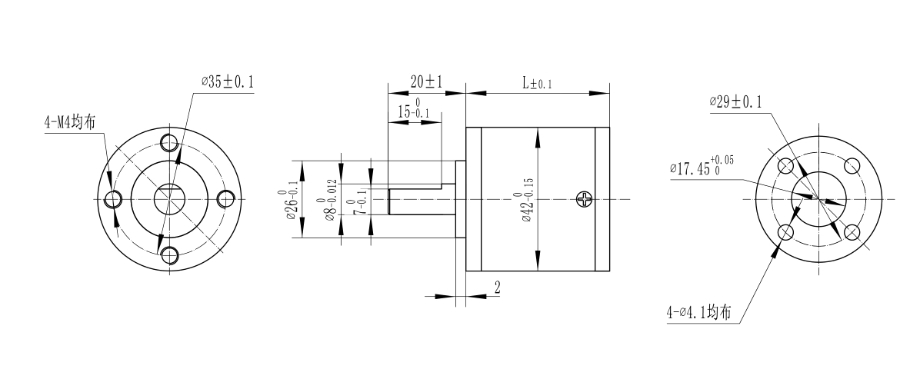

Mechanical Dimension

GEARBOX 42mm Specification

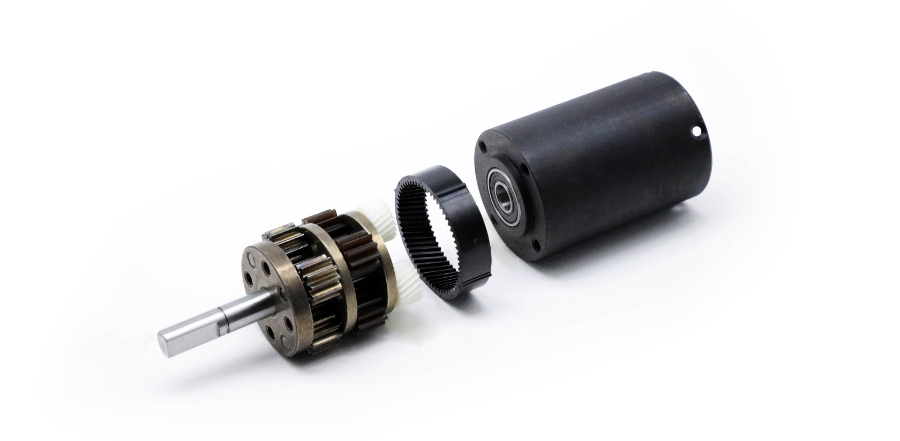

Planetary Gearbox 42mm
Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	1.0	3.0	81%	32.5	170	1
1/6
1/15	4.0	12	72%	46.3	207	2
1/18
1/25
1/36
1/54	8.0	25	65%	60.1	267	3
1/65
1/90
1/112
1/155
1/216	10	30	65%	60.1	267

Gearbox Production

Large-scale production

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have our own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden), CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.
