42BLF01-027AG16 24V High Output 18.3W Planetary Gearbox Motor Bldc Motor With Gearbox

Short Description:

Place of Origin  China

Brand Name Hetai

Certification CE ROHS ISO

Model Number 42BLF01-027AG16

Minimum Order Quantity 50

Packaging Details Carton with Inner Foam Box, Pallet

Delivery Time  28-31DAYS

Payment Terms L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability 10000pcs/month


Product Detail

Product Tags

Specifications

Product Name Gearbox Brushless Motor
Nominal Voltage 24 V
Rated Speed 250 RPM
No-load Current 0.8 A
Rated Torque 0.7 N.M
Reduction Ratio 1:16
Resistance 2.2 OHMS
Torque Constant 0.042N.m/A
Power  18.3W
Certification CE ROHS ISO



Product Description

42BLF01-027AG16 24V High Output 18.3W Planetary Gearbox Motor Bldc Motor With Gearbox



Advantages of brushless geared motors:


1. No brush, low interference
The brushless motor has removed the brush, and the most direct change is that there is no electric spark generated when the brushed motor is running, which greatly reduces the interference of the electric spark to the remote control radio equipment.


2. Low noise and smooth operation
The brushless motor has no brushes, the friction force is greatly reduced during operation, the operation is smooth, and the noise will be much lower. This advantage is a huge support for the stability of the model.


3. Long service life and low maintenance cost
Without the brush, the wear of the brushless motor is mainly on the bearing. From a mechanical point of view, the brushless motor is almost a maintenance-free motor. When necessary, only need to do some dust removal maintenance.

Electrical Specification

Product Name

Brushless Gearbox Motor

Model

42BLF01-027AG16

Reduction Ratio

1:16

Voltage (V)

24 V

Rated Speed with gearbox (RPM)

250±10%

Rated Torque with gearbox (N.M)

0.7

Power (W)

18.3

Insulation class

B



Other Gearbox Ratio

Reduction Ratio

15:1

4:1

6:1

18:1

26:1

48:1

66:1

Number of Poles

4

Number of Phase

3

Nominal Voltage

24V

Insulation Class

B

Rated torque after speed

200rpm

750rpm

500rpm

167rpm

115rpm

63rpm

45rpm

Rated torque with gearbox

1.9n.m

0.6n.m

0.9n.m

2.3n.m

3.4n.m

6.2n.m

8.6n.m

No-load Speed

3000rpm

No-load Current

0.6A

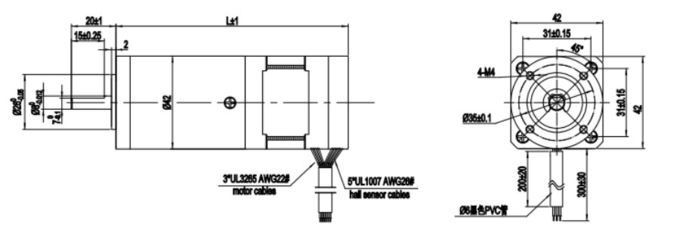

Mechanical Dimension

Mechanical Dimension1

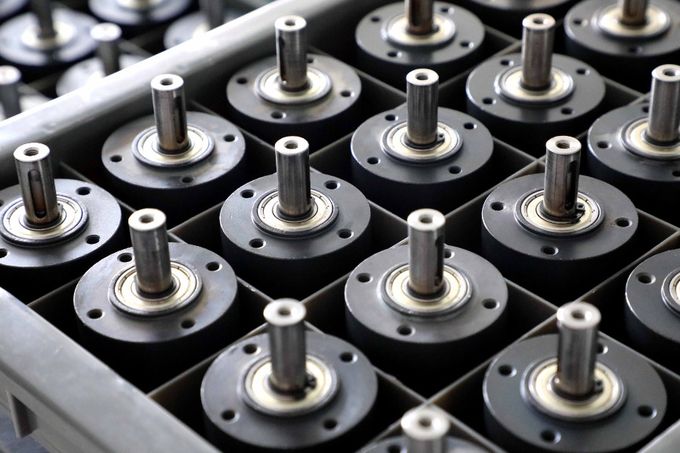

High-quality Raw Materials

Mechanical Dimension4

Brushless Motor Final Inspection

Mechanical Dimension2

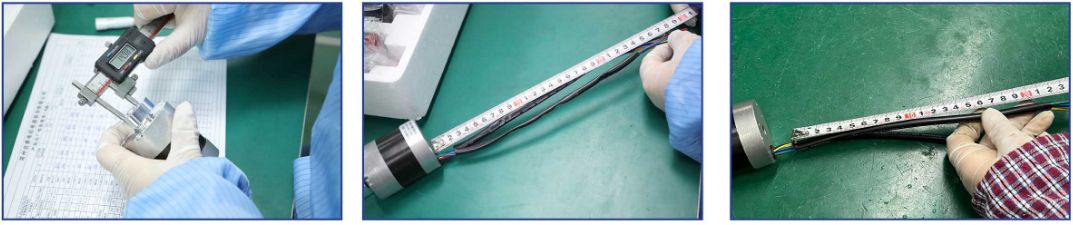

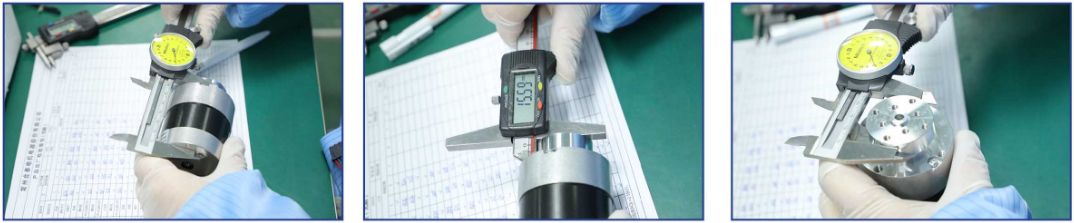

Measure the Motor Length

Measure the Shaft Length

Measure the Ouler Circle

Mechanical Dimension3

Measure the Screw Hole Distance

Measure the Length of Wire

Measure the Length of PVC

Mechanical Dimension5

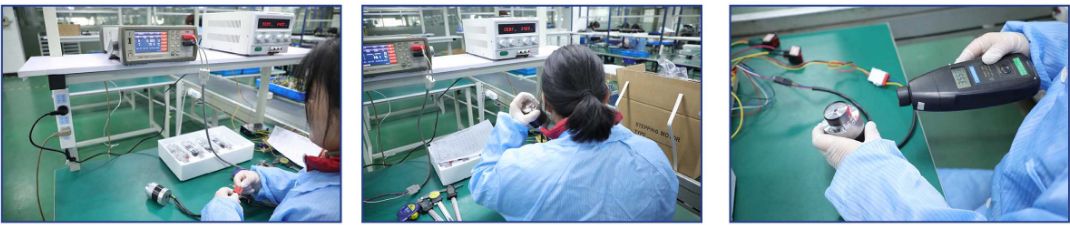

Test the Resistance

Listening

Test the speed

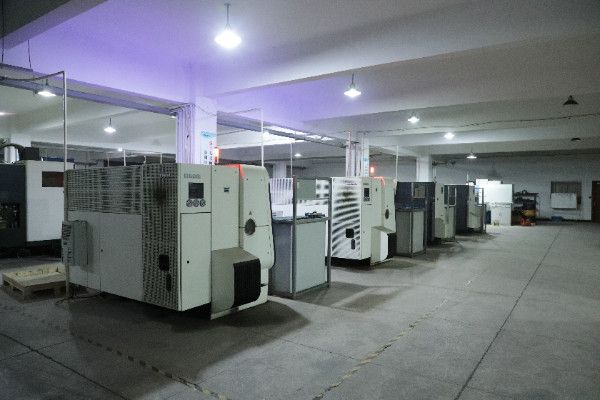

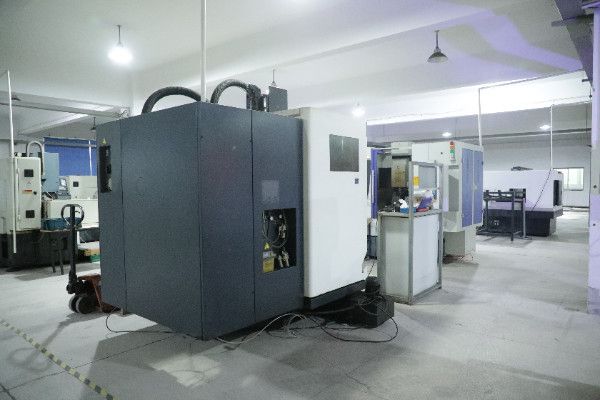

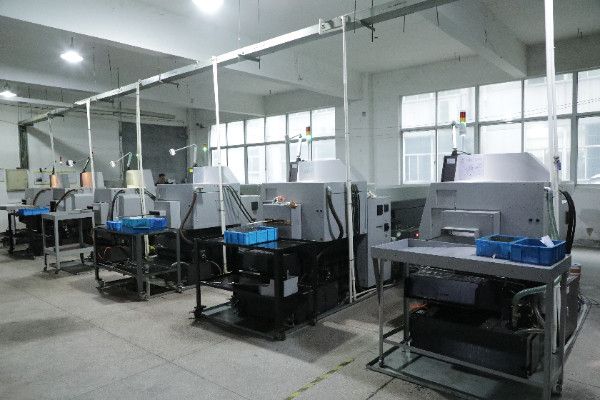

CNC Center

Mechanical Dimension6
Mechanical Dimension7
Mechanical Dimension9

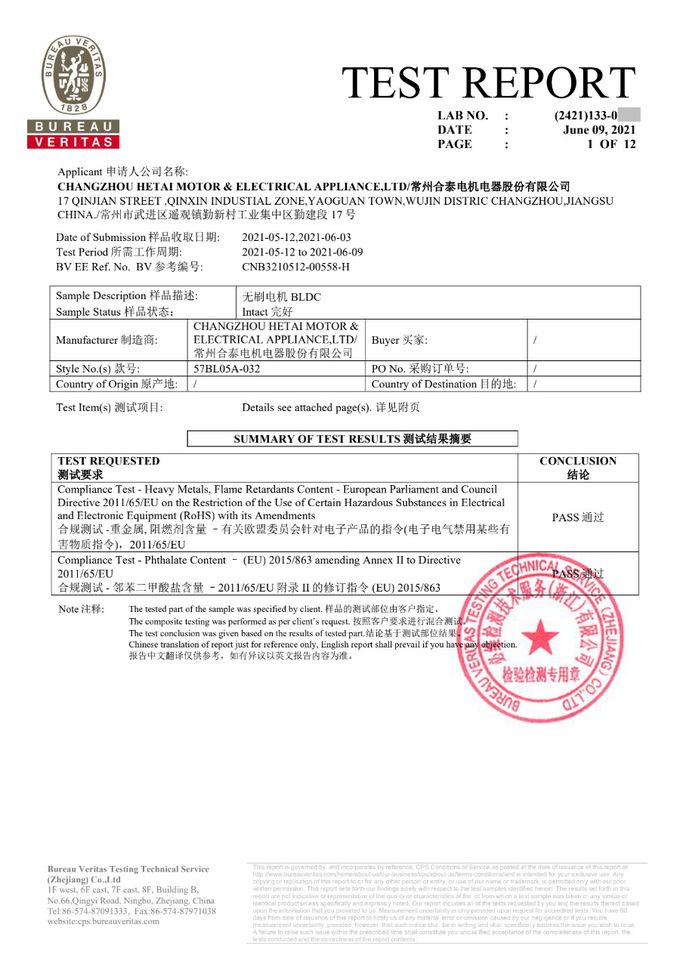

Certification of Hetai

Mechanical Dimension10
Mechanical Dimension11
Mechanical Dimension14
Mechanical Dimension13
Mechanical Dimension12
Mechanical Dimension15
Mechanical Dimension16

Strict inspection process to ensure that every product is a qualified product,the quality is guaranteed。

Packing & Delivery

Packing & Delivery2
Packing & Delivery
Packing & Delivery4
