60mm Nema24 Hybrid Stepper Motor 4 Leads 8 Wires 1.8 Step Angle 20kg.cm

Short Description:

Place of Origin:  China

Brand Name: Hetai

Certification: CE ROHS ISO

Model Number: 60HS

Minimum Order Quantity: 50

Packaging Details: Carton with Inner Foam Box, Pallet

Delivery Time:  25DAYS

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000pcs/month


Product Detail

Product Tags

Specifications

Product Name Hybrid Stepper Motor
Step Accuracy  ± 5%
Temperature Rise  80 ℃ Max
Insulation Resistance 100MΩ Min.500VDC
Ambient Temperature -20℃~+50℃
Dielectric Strength  500VAC 1 Minute
Max Radial Force 75N (20mm From Front Flange)
Max Axial Force 15N
Step Angle 1.8°
Lead Wire Number  4/6/8
Motor Weight(Kg) 1.0/1.1/1.4/1.6

Product Description

60mm Nema24 Hybrid Stepper Motor 4 Leads 8 Wires 1.8 Step Angle 20kg cm

The features of the hybrid stepper motor mainly include

Exact controlling of position

Controlling is simple using pulse signals

At the stopped location, this motor holds itself

High torque can be generated through compact size

Electrical Specification

MODEL STEP ANGLE
(°/STEP)
 LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(KG.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)

60HS63-1506-01

1.8

6

14.7

1.5

9.8

10.6

14

63

1.0

60HS67-1804-003A

1.8

4

4.68

1.8

2.6

7.8

16

67

1.1

60HS67-2204-001

1.8

4

3.96

2.2

1.8

5.0

16

67

1.1

60HS87-3504-001

1.8

4

4.0

3.5

1.15

4.5

27

87

1.4

60HS87-3008-003

1.8

8

3.9

3.0

1.3

3.2

21

87

1.4

60HS101-3008-001

1.8

8

6.0

3.0

2.0

4.0

25

101

1.6

60HS101-4204-002

1.8

4

4.2

4.2

1.0

4.0

33

101

1.6

*Products can be customized by special request.

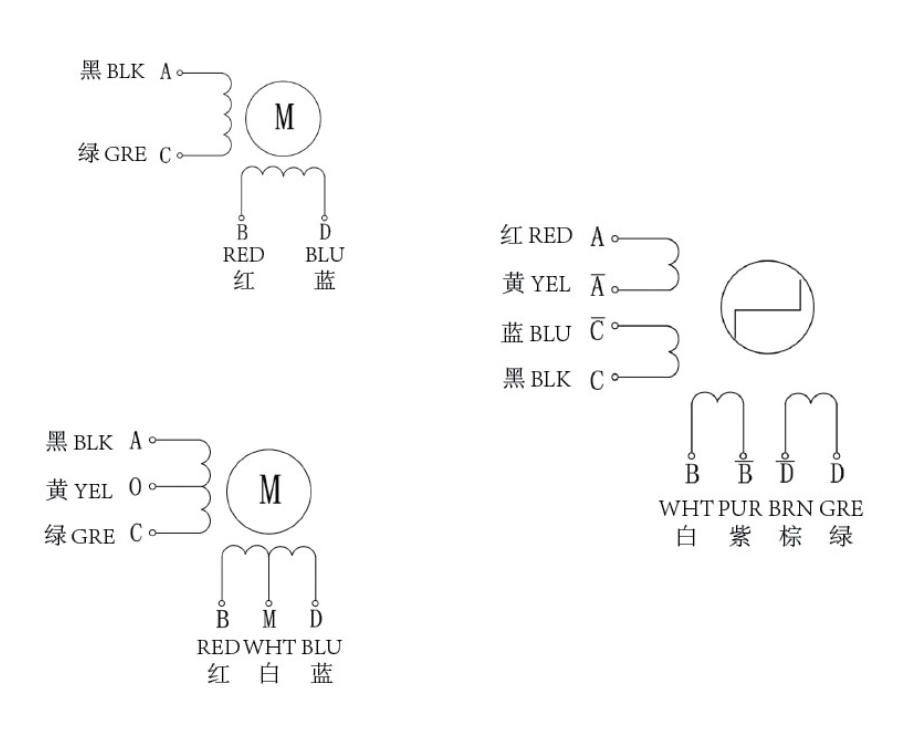

Wiring Diagram

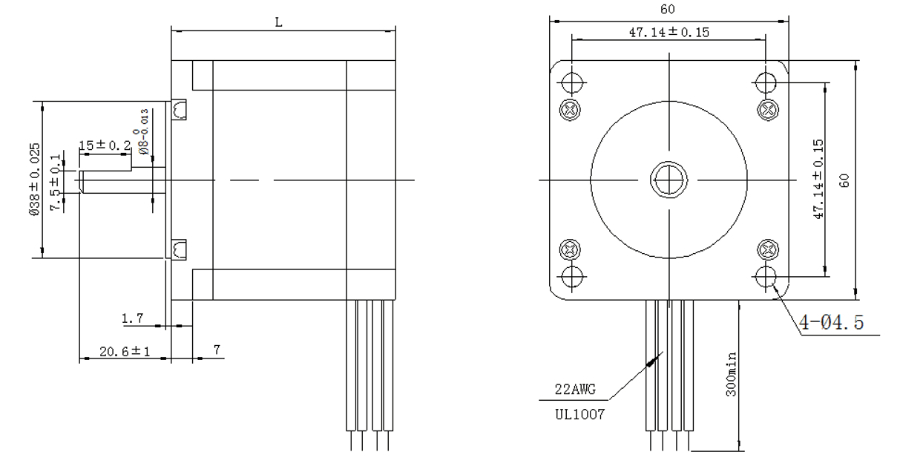

Mechanical Dimension

Production Process

Production Process (2)

Application range

application range

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

Certificate

When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by
ISO9001-EN
IATF16949-EN
CE
