60mm Nema24 Hybrid Stepper Motor 4 Leads 6 Wires 1.8 Step Angle 12kg cm
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) |
| Max Axial Force | 15N |
| Step Angle | 1.8° |
| Lead Wire Number | 4/6 |
| Motor Weight(Kg) | 0.77/1.0/1.34 |
Product Description
60mm Nema24 Hybrid Stepper Motor 4 Leads 6 Wires 1.8 Step Angle 12kg cm
A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor’s position can be commanded to move and hold at one of these steps without any position sensor for feedback.A hybrid stepper motor is a combination of the variable reluctance and permanent magnet type motors.
Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time.
Electrical Specification
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
60BYGH402-13A |
1.8 |
6 |
2.4 |
3.0 |
0.8 |
1.6 |
10 |
56 |
0.77 |
|
60BYGH410-05A |
1.8 |
4 |
6.0 |
1.0 |
6.0 |
16 |
12.5 |
56 |
0.77 |
|
60BYGH502-03A |
1.8 |
4 |
5.32 |
1.4 |
3.8 |
10 |
12.5 |
64 |
1.00 |
|
60BYGH500 |
1.8 |
6 |
3.6 |
1.5 |
8.4 |
8.0 |
12.5 |
64 |
1.00 |
|
60BYGH805-56 |
1.8 |
4 |
2.8 |
4.0 |
0.8 |
3.5 |
23.5 |
87 |
1.34 |
|
60BYGH808A |
1.8 |
4 |
4.5 |
3.0 |
1.5 |
5.0 |
26 |
87 |
1.34 |
*Products can be customized by special request.
Wiring Diagram

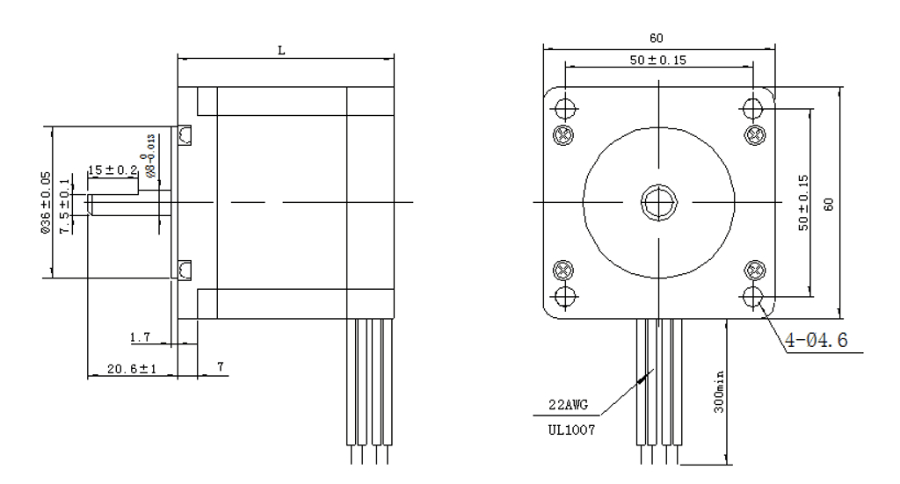

Mechanical Dimension
Application range
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers.Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Certificate
