42BYGH607-13AG5 Nema 17 1.8 Degree High Speed Stepper Motor With Gearbox

Short Description:

Place of Origin    China

Brand Name    Hetai

Certification    CE ROHS ISO

Model Number 42BYGH607-13AG5

Minimum Order Quantity 50

Packaging Details Carton with Inner Foam Box, Pallet

Delivery Time     28-31DAYS

Payment Terms L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability     10000pcs/month


Product Detail

Product Tags

Specifications

Product Name Gearbox Stepper Motor
Stepper Angel  1.8
Rated Voltage  8V
Rated Current  0.8A
Rated Power 11W
Holding Torque 0.33 N.m
Resistance 10 Ohms
Phase 2
Insulation Class B
Step Angle Accuracy ±5%



Product Description

42BYGH607-13AG5 nema 17 1.8 degree high speed customizable stepper motor with gearbox

A stepper motor is an open-loop control element stepper motor that converts electrical pulse signals into angular displacement or linear displacement. In simple terms, it is a device that produces relative angular displacement of objects. By controlling the sequence of electrical pulses applied to the motor coils , frequency and quantity, can control the steering, speed and rotation angle of the stepping motor.

Electrical Specification Of Gearbox Stepper Motor

Model

42BYGH607-13AG5

Step Angle (°/Step)

1.8

Lead Wire

4

Voltage (V)

8

Current(A/Phase)

0.8

Resistance

10

Inductance (mH/Phase)

20

Holding
Torque with gearbox (N.m)

3.3

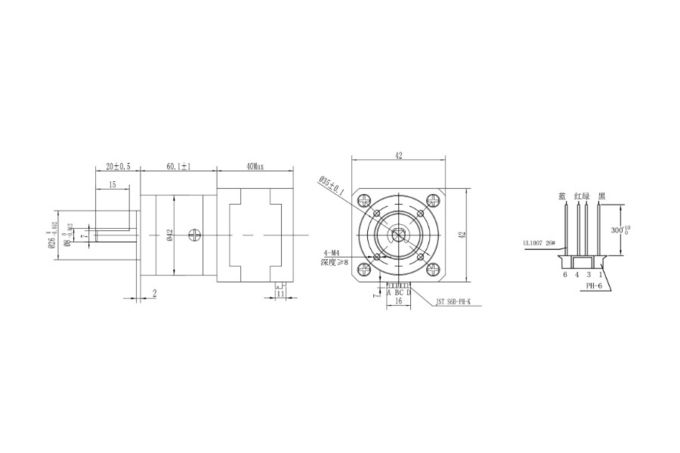

Mechanical Dimension Of Gearbox Stepper Motor

42BYGH607-13AG5 Nema 17 1.8 De20

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China

42BYGH208-56AG5 Nema17 Low Noi3

Production Process

42BYGH208-56AG5 Nema17 Low Noi4
Production Process (2)

Market Range Of Hetai

42BYGH208-56AG5 Nema17 Low Noi5

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

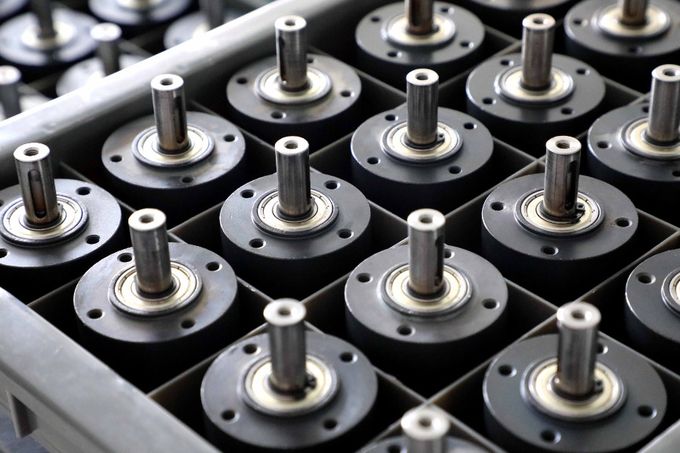

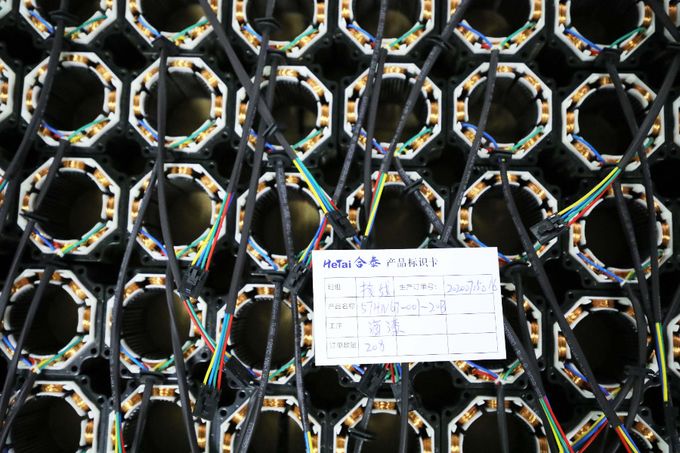

Raw Materials Of Gearbox Stepper Motor

42BYGH208-56AG5 Nema17 Low Noi7
42BYGH208-56AG5 Nema17 Low Noi9

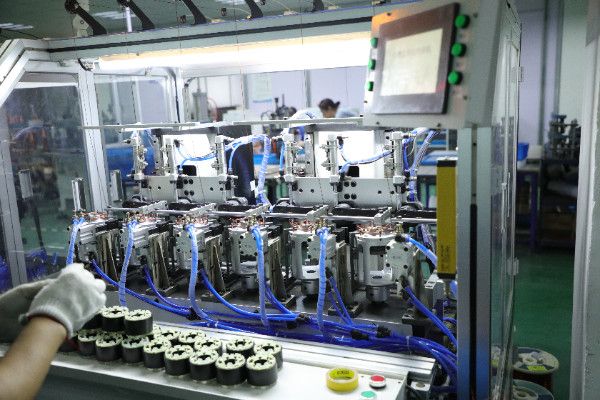

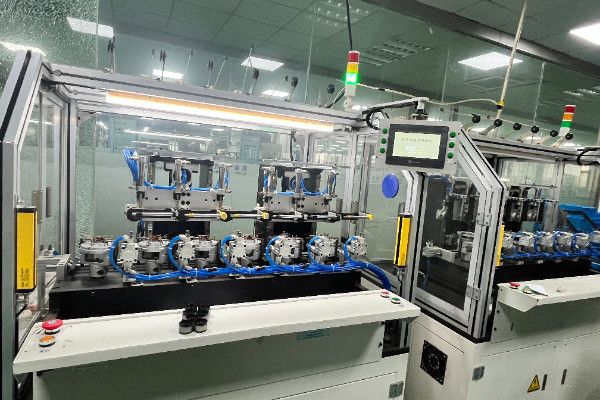

Automatic Winding Machine

42BYGH208-56AG5 Nema17 Low Noi8
42BYGH208-56AG5 Nema17 Low Noi10

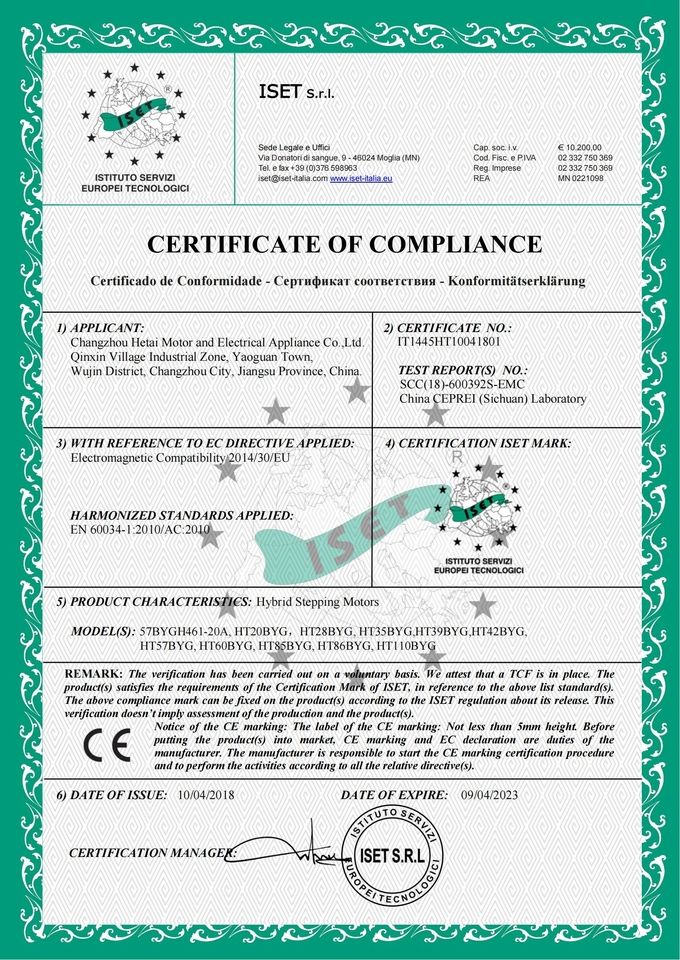

 Certification

42BYGH607-13AG5 Nema 17 1.8 De29
42BYGH607-13AG5 Nema 17 1.8 De32

Packing & Delivery

Packing & Delivery
Packing & Delivery4
