57mm 57BYGH601-05AG6 Nema23 1.8 Degree Low Speed Customizable Stepper Gearbox Motor

Short Description:

Place of Origin    China

Brand Name    Hetai

Certification    CE ROHS ISO

Model Number 57BYGH601-05AG6

Minimum Order Quantity 50

Packaging Details Carton with Inner Foam Box, Pallet

Delivery Time     28-31DAYS

Payment Terms L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability     10000pcs/month


Product Detail

Product Tags

Specifications

Product Name Gearbox Stepper Motor
Stepper Angel 1.8
Rated Voltage   12V
Rated Current 0.75A
Holding Torque 17 Kg.cm
Resistance 16 Ohms
Phase 2
Insulation Class B
Step Angle Accuracy ±5%
Step Angle 1.8



Product Description

57mm 57BYGH601-05AG6 nema23 1.8 degree low speed customizable stepper gearbox motor



Application of deceleration stepper motor
1. Increase the working torque of the motor and reduce the flange size;
2. Increase the moment of inertia of the motor and improve the start-stop rigidity of the motor;
3. Improve the resolution of stepper motor;
4. Avoid the speed resonance area of the stepping motor.

Electrical Specification Of Gearbox Stepper Motor

Model

57BYGH601-05AG6

Step Angle (°/Step)

1.8

Lead Wire

4

Voltage (V)

12

Current(A/Phase)

0.75

Resistance

16

Inductance (mH/Phase)

58

Holding
Torque with gearbox (N.m)

17

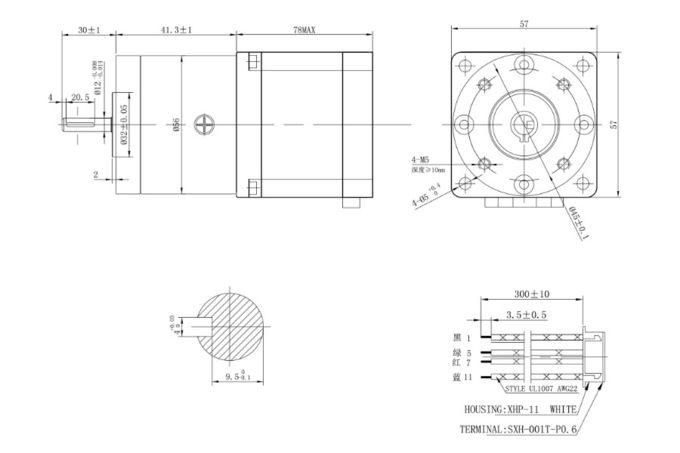

Mechanical Dimension Of Gearbox Stepper Motor

57mm 57BYGH601-05AG6 Nema23 1.1

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

42BYGH208-56AG5 Nema17 Low Noi3

Production Process

42BYGH208-56AG5 Nema17 Low Noi4
Production Process (2)

Market Range Of Hetai

42BYGH208-56AG5 Nema17 Low Noi5

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

Raw Materials Of Gearbox Stepper Motor

42BYGH208-56AG5 Nema17 Low Noi7
42BYGH208-56AG5 Nema17 Low Noi9

Automatic Winding Machine

42BYGH208-56AG5 Nema17 Low Noi8
42BYGH208-56AG5 Nema17 Low Noi10

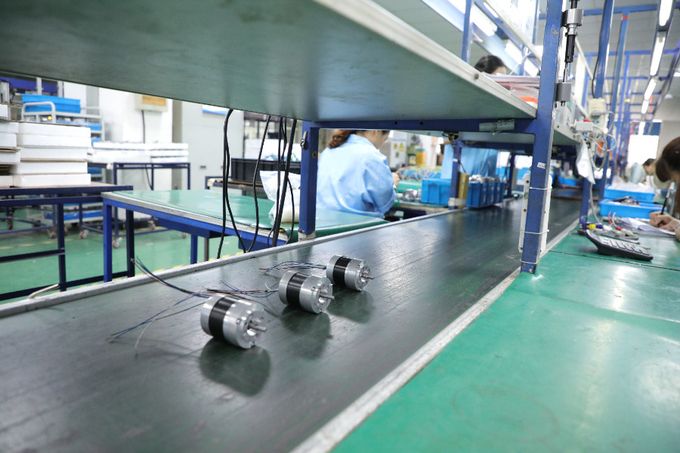

Automatic Assembly Line

42BYGH835-08AG16 Customized Lo42

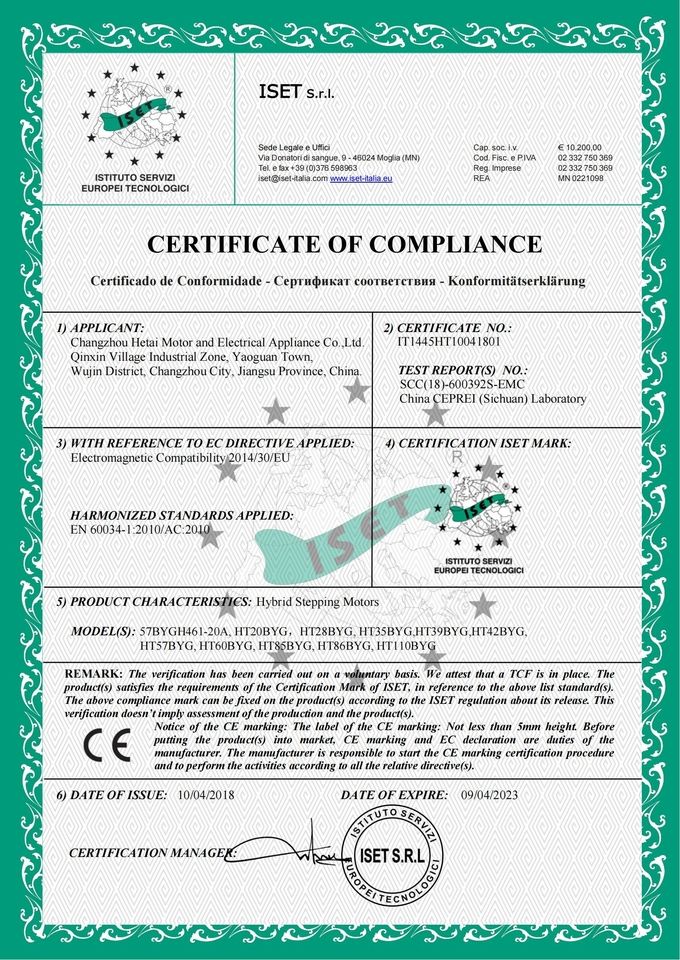

CE Certification Of Stepper Gearbox Motor

57mm 57BYGH601-05AG6 Nema23 1.13
57mm 57BYGH601-05AG6 Nema23 1.14

Packing & Delivery

Packing & Delivery
Packing & Delivery4
