110mm Nema42 Hybrid Stepper Motor 4 Wires 1.8 Step Angle 5 KG

Short Description:

Place of Origin : China

Brand Name: Hetai

Certification: CE ROHS ISO

Model Number: 110BYGH

Minimum Order Quantity: 50

Packaging Details: Carton with Inner Foam Box, Pallet

Delivery Time:  25DAYS

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000pcs/month


Product Detail

Product Tags

Specifications

Product Name Hybrid Stepper Motor
Step Accuracy  ± 5%
Temperature Rise      80 ℃ Max
Insulation Resistance 100MΩ Min.500VDC
Ambient Temperature -20℃~+50℃
Dielectric Strength  500VAC 1 Minute
Max Radial Force     330N (20mm From Front Flange)
Max Axial Force     100N
Step Angle   1.8°
Lead Wire Number      4

Product Description

110mm Nema42 Hybrid Stepper Motor 4 Wires 1.8 Step Angle 5 KG

The Hybrid Stepper Motor applications are as follows

Hybrid Stepper  motors are applicable in the production of automated devices, gauges & machines used as cutting, labeling, packaging, filling, etc.

Hybrid Stepping motors are very popular because it provides good performance in terms of holding torque, speed, and step resolution as compared with the permanent magnet rotor.

Electrical Specification

MODEL STEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(N.M)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)

110BYGH80-001AG

1.8

4

9.0

6.0

1.5

14.0

8.5

80

5.0

110BYGH99-001-10

1.8

4

4.95

5.5

0.9

12.0

11.2

99

5.0

110BYGH150-001

1.8

4

5.44

6.8

0.8

12.0

21

150

8.4

110BYGH165-001-03

1.8

4

4.80

6.0

0.8

14.0

24

165

9.5

110BYGH201-001

1.8

4

5.36

8.0

0.76

16.0

30

201

12.0

*Products can be customized by special request.

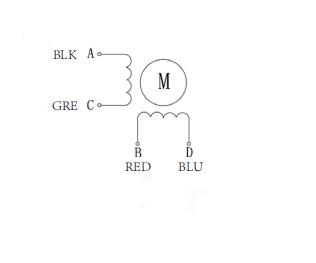

Wiring Diagram

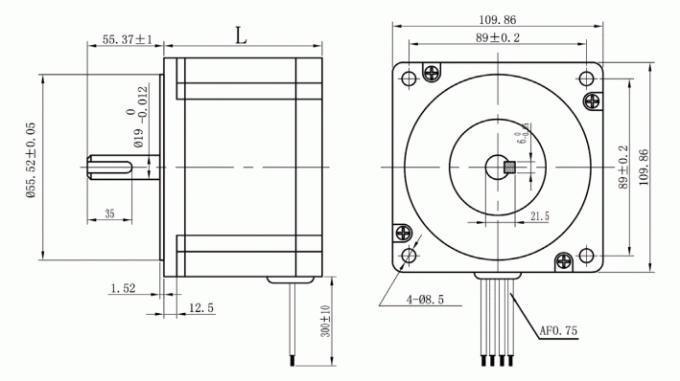

Mechanical Dimension

Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia, and all-around China.

Production Process

Production Process (2)

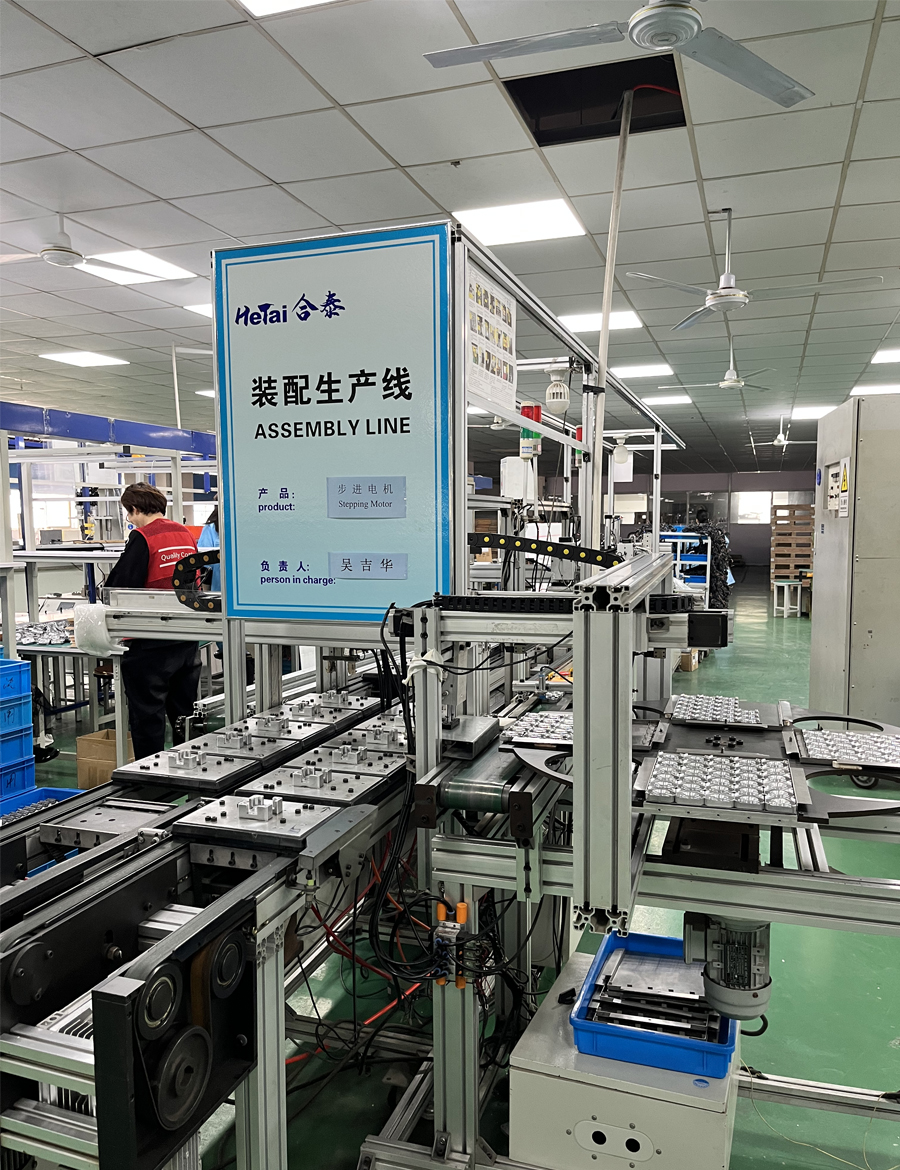

Assembly Line

step motor inspection
Certificate (1)
Certificate (4)
Certificate (5)
Certificate (3)
Certificate (2)
