57mm Nema23 Hybrid Stepper Motor 4 Awọn itọsọna 1.8 Igbesẹ Igun 0.43KG
Awọn pato
| Orukọ ọja | arabara Stepper Motor |
| Yiye Igbesẹ | ± 5% |
| Dide iwọn otutu | 80 ℃ ti o pọju |
| Atako | 1.0 Ω |
| Idabobo Resistance | 100MΩ Min.500VC DC |
| Ibaramu otutu | -20℃~+50℃ |
| Dielectric Agbara | 500VAC 1 iseju |
| Max Radial Force | 75N (20mm Lati Flange iwaju) |
| Max Axial Force | 15N |
| Igbesẹ Igun | 1.8° |
| Nọmba Waya asiwaju | 4 |
| Ìwúwo Mọto (Kg) | 0.43 / 0.54 / 0.68 / 0.70 |
| Idaduro Torque | 1.76 Nm |
| Inductance | 2mH |
ọja Apejuwe
57mm Nema23 Hybrid Stepper Motor 4 Awọn itọsọna 1.8 Igbesẹ Igun 0.43KG
A arabara stepper motor ni a apapo ti awọn oniyipada reluctance ati ki o yẹ oofa iru Motors.Awọn ẹrọ iyipo ti a arabara stepper motor ti wa ni axially magnetized bi a yẹ oofa stepper motor, ati awọn stator ti wa ni electromagnetically agbara bi a oniyipada reluctance stepper motor.Mejeeji stator ati ẹrọ iyipo jẹ ehin-pupọ.
Moto Stepper jẹ iru motor fifa irọbi kan.Ilana iṣẹ rẹ ni lati lo Circuit itanna lati ṣe iyipada lọwọlọwọ taara sinu ipese agbara pinpin akoko, lọwọlọwọ iṣakoso atẹle-ọpọlọpọ, lo lọwọlọwọ yii lati fi agbara si motor stepper, motor stepper le ṣiṣẹ ni deede.Iwakọ naa jẹ ipese agbara pinpin akoko fun motor stepper, oluṣakoso ilana atẹle-pupọ.
Itanna Specification
| AṢE | IGUN IGBESE (°/STEP) | OLORI WIRE (RARA.) | FOLTAGE (V) | LOSIYI (A/Alakoso) | RESISTANCE (Ω/Alakoso) | INDUCTANCE (MH/Alakoso) | IDAGBASOKE (KG.CM) | IGI MOTO L(MM) | ÌWÉ MOTOR (KG) |
| 57HN41-001-01 | 1.8 | 4 | 2.1 | 4.2 | 0.5 | 1.4 | 9.5 | 41 | 0.43 |
| 57HN41-003-04 | 1.8 | 4 | 7.0 | 1.0 | 7.0 | 14.7 | 9.0 | 41 | 0.43 |
| 57HN46-005A | 1.8 | 4 | 2.3 | 4.2 | 0.55 | 1.5 | 10.6 | 46 | 0.54 |
| 57HN46-003A | 1.8 | 4 | 8.2 | 1.0 | 8.2 | 18 | 10.5 | 46 | 0.54 |
| 57HN51-003A | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.4 | 9.5 | 51 | 0.63 |
| 57HN51-005 | 1.8 | 4 | 4.0 | 2.0 | 2.0 | 6.5 | 12 | 51 | 0.63 |
| 57HN56-002 | 1.8 | 4 | 9.0 | 2.5 | 3.6 | 11 | 15 | 56 | 0.68 |
| 57HN56-005-02 | 1.8 | 4 | 6.8 | 1.0 | 6.8 | 24 | 12 | 56 | 0.68 |
| 57HN67-001-15 | 1.8 | 4 | 5.76 | 1.6 | 3.6 | 12 | 19 | 67 | 0.70 |
| 57HN67-004-07 | 1.8 | 4 | 1.5 | 3.0 | 0.5 | 1.8 | 14 | 67 | 0.70 |
* Awọn ọja le ṣe adani nipasẹ ibeere pataki.

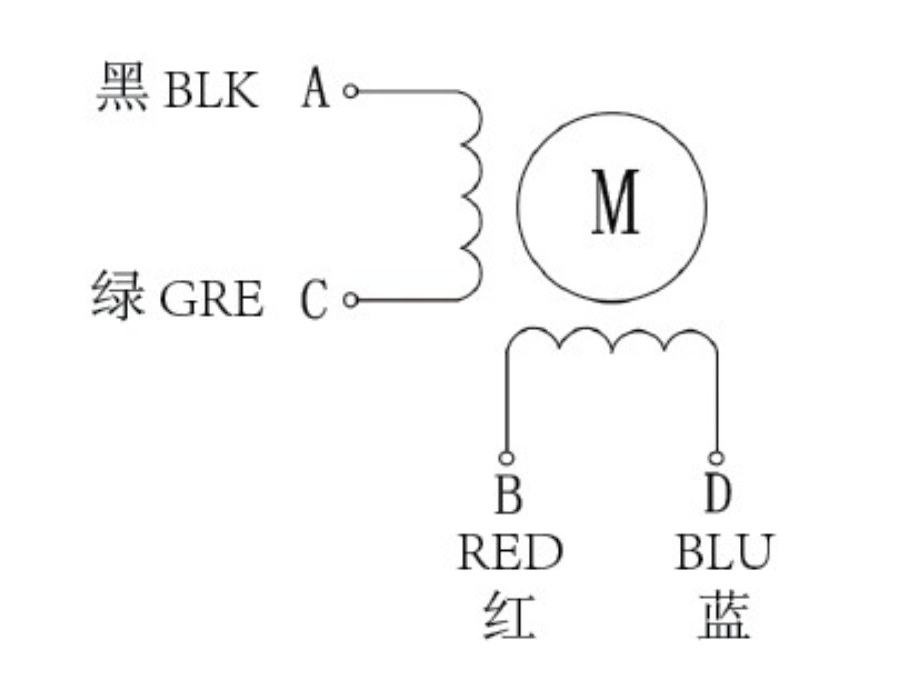

Aworan onirin

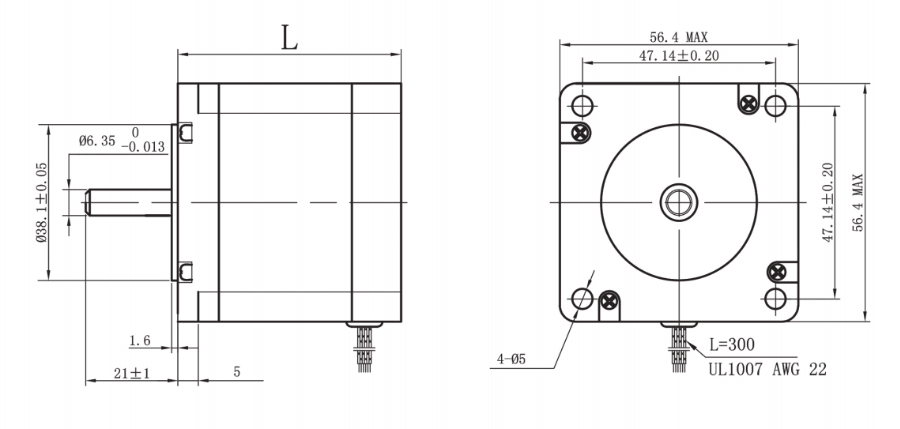

Mechanical Dimension
Market Range
Iwe-ẹri
Nigbati o ba de si abala didara, Hetai jẹ oṣiṣẹ nipasẹ Iwe-ẹri ISO, CE ati Rohs.Didara ọja naa tun jẹ idanimọ nipasẹ ọpọlọpọ awọn alabara.
Hetai tun jẹ igberaga fun iwadii rẹ ati idagbasoke agbara.Pẹlu atilẹyin ti ile-iṣẹ amọdaju ati awọn onimọ-ẹrọ ti o ni iriri, Hetai gba Awọn itọsi IwUlO 13 ati Aami-ẹri ile-iṣẹ imọ-ẹrọ giga ati awọn ẹbun miiran lakoko awọn ọdun.
Moto stepper jẹ mọto ina mọnamọna ti ẹya akọkọ rẹ ni pe ọpa rẹ n yi nipasẹ ṣiṣe awọn igbesẹ, iyẹn ni, nipa gbigbe nipasẹ iye iwọn ti o wa titi.Ẹya yii ni a gba ọpẹ si ọna inu ti motor ati gba laaye lati mọ ipo igun gangan ti ọpa nipasẹ kika kika iye awọn igbesẹ ti a ṣe, laisi iwulo fun sensọ kan.Ẹya yii tun jẹ ki o baamu fun ọpọlọpọ awọn ohun elo.
